ISG管道离心泵

所属分类：离心泵系列
浏览次数：542

二维码：

添加时间：2022-12-12

简要说明：

产品特点

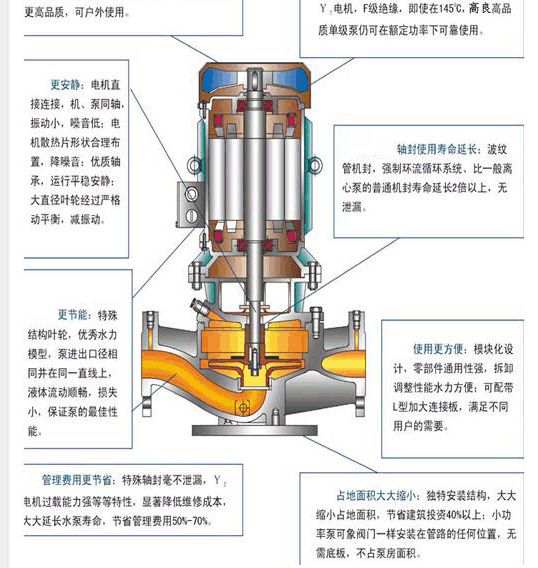

1、清水泵为立式结构，进出口口径相同，且位于同一中心线上，可象阀门一样安装于管路之中，外形紧凑美观，占地面积小，建筑投入低，如加上防护罩则可置于户外使用。

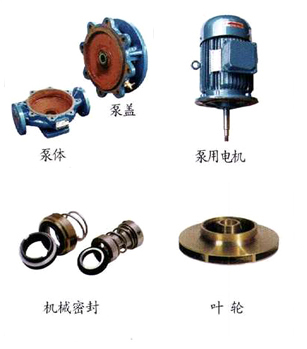

2、清水泵叶轮直接安装在电机的加长轴上，轴向尺寸短，结构紧凑，泵与电机轴承配置合理，能有效地平衡泵运转产生的径向和轴向负荷，从而确保了泵的运行平稳，振动小、噪音低。

3、轴封采用机械密封或机械密封组合，采用钛合金密封环、中型耐高温机械密封和采用硬质合金材质，密封，能有效地延长机械密封的使用寿命。

4、安装检修方便，无需拆动管道路系统，只要卸下泵联体座螺母即可抽出全部转子部件。

5、可根据使用要求即流量和扬程的需要采用泵的串、并联运行方式。

6、可根据管路布置的要求采用泵的竖式和横式安装。

产品概述

ISG型立式管道离心泵采用IS型离心泵之性能参数，在一般立式泵的基础上进行巧妙组合设计而成。同时根据使用温度、介质等不同在ISG型基础上派出适用热水、高温、腐蚀性化工泵、油泵。

ISG型立式管道离心泵的详细资料：

ISG型立式管道离心泵是本单位科技人员联合国内水泵技术人员选用水力模型，采用IS型离心泵之性能参数，在一般立式泵的基础上进行巧妙组合设计而成。同时根据使用温度、介质等不同在ISG型基础上派出适用热水、高温、腐蚀性化工泵、油泵。该系列产品具有节能、噪音低、性能可靠等优点。

性能参数

ISG型立式管道离心泵主要用途:

1、ISG型立式管道离心泵，供输送清水及物理化学性质类似于清水的其他液体之用，适用于工业和城市给排水、高层建筑增压送水、园林喷灌、消防增压、远距离输送、暖通制冷循环、浴室等冷暖水循环增压及设备配套，使用温度T<80℃。<>

2、IRG（GRG）型立式热水（高温）循环泵广泛适用于：能源、冶金、化工、纺织、造纸，以及宾馆饭店等锅炉高温热水增压循环输送及城市采用暖系统循环用泵，IRG型使用温度T<120℃，珀grg型使用温度t<240℃。<>

3、IHG型立式管道化工泵，供输送不含固体颗粒，具有腐蚀性，粘度类似于水的液体，适用于石油、化工、冶金、电力、造纸、食品制药和合成纤维等部门，使用温度为20℃~+120℃。

4、YG型立式管道油泵，供输送汽油、煤油、柴油等石油产品，被输送介质温度为-20℃~+120℃。

工作条件:

1、吸入压力≤1． 0MPa，或泵系统高工作压力≤1．6MPa，即泵吸入口压力+泵扬程≤1．6MPa，泵静压试验压力为2．5MPa，订货时请注明系统工作压力。泵系统工作压力大于1．6MPa时应在订货时另行提出，以便在制造时泵的过流部分和联接部分采用铸钢材料。

2、环境温度<40℃，相对湿度<95％。<>

3、所输送介质中固体颗粒体积含量不过单位体积的0．1％，粒度<0．2mm。<>

注：如使用介质为带有细小颗粒，请在订货时说明，以便厂家采用式机械密封。

型号意义：

管道泵性能参数：

型号	流量		扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
型号	m3/h	L/s	扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
15-80	1.11.52.0	0.30.420.55	8.587	263434	2800	0.18	2.3	17
20-110	1.82.53.3	0.50.690.91	161513.5	253435	2800	0.37	2.3	25
20-160	1.82.53.3	0.50.690.91	333230	192523	2900	0.75	2.3	29
25-110	2.845.2	0.781.111.44	161513.5	344241	2900	0.55	2.3	26
25-125	2.845.2	0.781.111.44	20.62018	283635	2900	0.75	2.3	28
25-125A	2.53.64.6	0.691.01.28	171614.4	35	2900	0.55	2.3	27
25-160	2.845.2	0.781.111.44	333230	243233	2900	1.5	2.3	39
25-160A	2.63.74.9	0.121.031.36	292826	31	2900	1.1	2.3	34
32-100	4.5	12.5	12.5	44	2900	0.55	2.0	27
32-100(I)	4.46.38.3	1.221.752.32	13.212.511.3	485453	2900	0.75	2.0	32
32-125	3.556.5	0.971.391.8	222018	404442	2900	0.75	2.3	28
32-125A	3.14.55.8	0.861.251.61	17.61614.4	43	2900	0.55	2.3	28
32-160	6.5	5	32	44	2900	1.5	2.3	39
32-160A	4	1.1	25	34	2900	1.1	2.0	38
32-160(I)	4.46.38.3	1.221.752.32	33.23230.2	344042	2900	2.2	2.0	4.7
32-200	4.5	12.5	50	32	2900	3	2.0	55
32-200(I)	4.46.38.3	1.221.752.32	50.55048	263335	2900	4	2.0	43
32-200A	2.845.2	0.781.111.44	44.64442.7	344042	2900	2.2	2.0	74
40-100	4.46.38.3	1.221.752.31	13.212.511.3	485453	2900	0.55	2.3	32
40-100A	3.95.67.4	1.081.562.06	10.6109	52	2900	0.37	2.3	32
40-125	4.46.38.3	1.221.752.31	212018	414643	2900	1.1	2.3	34
40-125A	3.95.67.4	1.081.562.06	17.61614.4	404541	2900	0.75	2.3	33
40-160	4.46.38.3	1.221.752.31	333230	354040	2900	2.2	2.3	47
40-160A	4.15.97.8	1.141.642.17	292826.3	343939	2900	1.5	2.3	43
40-160B	3.85.57.2	1.061.532.0	25.52422.5	343837	2900	1.1	2.3	38
40-200	4.46.38.3	1.221.752.31	515048	263332	2900	4.0	2.3	74
40-200A	4.15.97.8	1.141.642.17	454442	263130	2900	3.0	2.3	62
40-200B	3.75.37.0	1.031.471.94	383634.5	29	2900	2.2	2.3	52
40-250	4.46.38.3	1.221.752.31	828074	242828	2900	7.5	2.3	105
40-250A	4.15.97.8	1.141.642.17	727065	242827	2900	5.5	2.3	98
40-250B	3.85.57.0	1.061.531.94	61.56056	232726	2900	4.0	2.3	77
40-100(I)	8.812.516.3	2.443.474.53	13.212.511.3	556260	2900	1.1	2.3	34
40-100(I)A	81114.5	2.223.054.03	10.6109	60	2900	0.75	2.3	32
40-125(I)	8.812.516.3	2.443.474.53	21.22017.8	495857	2900	1.5	2.3	38
40-125(I)A	81114.5	2.223.054.03	171614	57	2900	1.1	2.3	33
40-160(I)	8.812.516.3	2.443.474.53	333230	455251	2900	3.0	2.3	56
40-160(I)A	8.211.715.2	2.283.254.22	292826	445150	2900	2.2	2.3	47
40-160(I)B	7.310.413.5	2.382.893.75	232220.5	50	2900	1.5	2.3	43
40-200(I)	8.812.516.3	2.443.474.53	51.25048	384646	2900	5.5	2.3	85
40-200(I)A	8.311.715.3	2.313.254.25	45.04442	374545	2900	4.0	2.3	75
40-200(I)B	7.510.613.8	2.082.943.83	373634	44	2900	3	2.3	63
40-250(I)	8.812.516.3	2.443.474.53	81.28077.5	313840	2900	11	2.3	145
40-250(I)A	8.211.615.2	2.283.224.22	71.07068	38	2900	7.5	2.3	95
40-250(I)B	7.610.814	2.113.03.89	61.46058	37	2900	5.5	2.3	94
40-250(I)C	7.110.013.1	1.972.783.64	53.25250.4	36	2900	5.5	2.3	88
50-100	8.812.516.3	2.443.474.53	13.612.511.3	556260	2900	1.1	2.3	36
50-100A	81114.5	2.223.054.03	11109	60	2900	0.75	2.3	35
50-125	8.812.516.3	2.443.474.53	21.52017.8	495857	2900	1.5	2.3	43
50-125A	81114.5	2.223.054.03	171614	57	2900	1.1	2.3	38
50-160	8.812.516.3	2.443.474.53	333230	455230	2900	3.0	2.3	59
50-160A	8.211.715.2	2.283.254.22	292826	445150	2900	2.2	2.3	51
50-160B	7.310.413.5	2.382.893.75	232220.5	50	2900	1.5	2.3	47
50-200	8.812.516.3	2.443.474.53	525048	384646	2900	5.5	2.3	101
50-200A	8.311.715.3	2.313.254.25	45.84442	374545	2900	4.0	2.3	80
50-200B	7.510.613.8	2.082.943.83	373634	44	2900	3	2.3	68
50-250	8.812.516.3	2.443.474.53	828077.5	293840	2900	11	2.3	160
50-250A	8.211.615.2	2.283.224.22	71.57068	38	2900	7.5	2.3	115
50-250B	7.610.814	2.113.03.89	61.46058	37	2900	5.5	2.3	114
50-250C	7.110.013.1	1.972.783.64	53.25250.4	36	2900	5.5	2.3	108
50-100(I)	17.52532.5	4.866.949.03	13.712.510.5	676969	2900	1.5	2.5	41
50-100(I)A	15.622.329	4.36.198.1	11108.4	656768	2900	1.1	2.5	36
50-125(I)	17.52532.5	4.866.949.03	21.52018	606867	2900	3.0	2.5	56
50-125(I)A	15.622.329	4.336.198.1	171613.6	586665	2900	2.2	2.5	48

型号	流量		扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
型号	m3/h	L/s	扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
50-160(I)	17.52532.5	4.686.949.03	34.43227.5	546360	2900	4.0	2.5	72
50-160(I)A	16.423.430.4	4.566.58.44	302824	546259	2900	3.0	2.5	71
50-160(I)B	15.021.628	4.176.07.78	262420.6	58	2900	2.2	2.5	59
50-200(I)	17.52532.5	4.866.949.03	52.75045.5	495859	2900	7.5	2.5	108
50-200(I)A	16.423.530.5	4.566.538.47	46.44440	485758	2900	5.5	2.5	107
50-200(I)B	15.221.828.3	4.226.067.86	403834.5	55	2900	4	2.5	100
50-250(I)	17.52532.5	4.866.949.03	828076.5	395052	2900	15.0	2.5	175
50-250(I)A	16.423.430.5	4.566.58.47	71.57067	395052	2900	11.0	2.5	165
50-250(I)B	1521.628	4.176.07.78	616057.4	384954	2900	7.5	2.5	165
50-315(I)	17.52532.5	4.866.949.03	128125122	304044	2900	30.0	2.5	310
50-315(I)A	16.623.731	4.616.588.6	115113110	304044	2900	22	2.5	245
50-315(I)B	15.722.529.2	4.366.258.0	10310198	39	2900	18.5	2.5	215
50-315(I)C	14.420.626.8	4.05.727.44	868583	38	2900	15.0	2.5	195
65-100	17.52532.5	4.866.949.03	13.712.510.5	676969	2900	1.5	2.5	46
65-100A	15.622.329	4.36.198.1	11108.4	656768	2900	1.1	2.5	41
65-125	17.52532.5	4.866.949.03	21.62018	606867	2900	3	2.5	58
65-125A	15.622.329	4.336.198.1	171614.4	586665	2900	2.2	2.5	49
65-160	17.52532.5	4.866.949.03	34.43227.5	546360	2900	4.0	2.5	75
65-160A	16.423.430.4	4.566.58.44	302824	546259	2900	3	2.5	75
65-160B	15.021.628	4.176.07.78	262420.6	58	2900	2.2	2.5	63
65-200	17.52532.5	4.866.949.03	52.75045.5	495859	2900	7.5	2.5	107
65-200A	16.423.530.5	4.566.538.47	46.44440	485758	2900	5.5	2.5	107
65-200B	15.221.828.3	4.226.067.86	403834.5	55	2900	4	2.5	100
65-250	17.52532.5	4.866.949.03	828076.5	395052	2900	15	2.5	180
65-250A	16.423.430.5	4.566.58.47	71.57067	395052	2900	11	2.5	170
65-250B	1521.628	4.176.07.78	61 60 57.4	38 49 54	2900	7.5	2.5	170
65-315	17.5 25 32.5	4.86 6.94 9.03	127 125 122	32 40 44	2900	30	2.5	320
65-315A	16.6 23.7 31	4.61 6.58 8.6	115 113 110	32 40 44	2900	22	2.5	255
65-315B	15.7 22.5 29.2	4.36 6.25 8.0	103 101 98	39	2900	18.5	2.5	225
65-315C	14.4 20.6 26.8	4.0 5.72 7.44	86 85 83	38	2900	15	2.5	205
65-100(I)	35 50 65	9.72 13.9 18.1	13.8 12.5 10	67 73 70	2900	3	3.0	63
65-100(I)A	31.3 44.7 58	8.7 12.4 16.1	11 10 8	66 72 69	2900	2.2	3.0	53
65-125(I)	35 50 65	9.72 13.9 18.1	22 20 17	67 72.5 70	2900	5.5	3.0	99
65-125(I)A	31.3 45 58	8.7 12.5 16.1	17.5 16 13.6	66 71 69	2900	4	3.0	78
65-160(I)	35 50 65	9.72 13.9 18.1	35 32 28	63 71 70	2900	7.5	3.0	103
65-160(I)A	32.7 46.7 61	9.1 13 16.9	30.6 28 24	62 70 69	2900	5.5	3.0	103
65-160(I)B	30.3 43.3 56.3	8.4 12.0 15.6	26 24 21	69	2900	4	3.0	97
65-200(I)	35 50 65	9.72 13.9 18.1	53.5 50 46	55 67 68	2900	15	3.0	176
65-200(I)A	32.8 47 61	9.1 13.1 16.9	47 44 40	54 66 67	2900	11	3.0	166
65-200(I)B	30.5 43.5 56.6	8.5 12.1 15.7	40.6 38 33.4	65	2900	7.5	3.0	114
65-250(I)	35 50 65	9.72 13.9 18.1	83 80 72	52 59 60	2900	22	3.0	235
65-250(I)A	32.5 46.7 61	9.0 13.0 16.9	73 70 63	52 59 60	2900	18.5	3.0	205
65-250(I)B	30 43.3 56	8.3 12 15.6	62 60 54	58	2900	15	3.0	180
65-315(I)	35 50 65	9.72 13.9 18.1	128 125 121	44 54 57	2900	37	3.0	350
65-315(I)A	32.5 46.5 60.5	9.0 12.9 16.8	112.6 110 106.4	43 54 57	2900	30	3.0	335
65-315(I)B	31 44.5 58	8.6 12.4 16.1	102.5 100 98	53	2900	30	3.0	335
65-315(I)C	29 41 53.6	8.1 11.4 14.9	87 85 83	51	2900	22	3.0	270
80-100	35 50 65	9.72 13.9 18.1	13.8 12.5 10	67 73 70	2900	3	3.0	63
80-100A	31.3 44.7 58	8.7 12.5 16.1	11 10 8	66 72 69	2900	2.2	3.0	54
80-125	35 50 65	9.72 13.9 18.1	22 20 17	67 72.5 70	2900	5.5	3.0	99
80-125A	31.3 45 58	8.7 12.5 16.1	17.5 16 13.6	66 71 69	2900	4	3.0	79

型号	流量		扬程 (m)	效率 (%)	转速 (r/min)	电机功率 (kw)	汔蚀余量 (NPSH)r	重量 (kg)
型号	m3/h	L/s	扬程 (m)	效率 (%)	转速 (r/min)	电机功率 (kw)	汔蚀余量 (NPSH)r	重量 (kg)
80-160	35 50 65	9.72 13.9 18.1	35 32 28	63 71 70	2900	7.5	3.0	105
80-160A	32.7 46.7 61	9.1 13.0 16.9	30.6 28 24	62 70 69	2900	5.5	3.0	105
80-160B	30.3 43.3 56.3	8.4 12.0 15.6	26 24 21	69	2900	4	3.0	98
80-200	35 50 65	9.72 13.9 18.1	53.5 50 46	55 67 68	2900	15	3.0	175
80-200A	32.84761	9.113.116.9	474440	546667	2900	11	3.0	165
80-200B	30.543.556.6	8.512.115.7	40.63833.4	65	2900	7.5	3.0	115
80-250	355065	9.7213.918.1	838072	525960	2900	22	3.0	240
80-250A	32.546.761	9.013.016.9	737063	525960	2900	18.5	3.0	210
80-250B	3043.356	8.312.015.6	626054	58	2900	15	3.0	185
80-315	355065	9.7213.918.1	128125122	435457	2900	37	3.0	355
80-315A	32.546.560.5	9.012.916.8	112.6110107.4	435457	2900	30	3.0	340
80-315B	3144.558	8.612.416.1	102.510098	53	2900	30	3.0	340
80-315C	294153.6	8.111.414.9	988583	51	2900	22	3.0	275
80-350	355065	9.7213.918.1	146150142	556667	2900	55	3.0	570
80-350A	3144.558	8.612.416.1	138.4142134.8	65	2900	45	3.0	470
80-350B	294153.6	8.111.414.9	131.4135127.8	63	2900	37	3.0	440
80-100(I)	70100130	19.427.836.1	13.612.511	667675	2900	5.5	4.5	108
80-100(I)A	62.689116	17.424.732.2	11108.8	647474	2900	4	4.5	87
80-125(I)	70100130	19.427.836.1	23.52014	707665	2900	11	4.5	163
80-125(I)A	62.689116	17.424.732.2	191611	687465	2900	7.5	4.5	113
80-160(I)	70100130	19.427.836.1	36.53224	707665	2900	15	4.5	184
80-160(I)A	65.493.5121.6	18.226.033.8	322821	687467	2900	11	4.5	174
80-160(I)B	60.686.6112.5	16.824.131.3	722418	72	2900	7.5	4.5	174
80-200(I)	70100130	19.427.836.1	545042	657473	2900	22	4.0	251
80-200(I)A	65.493.5121.6	18.226.033.8	47.54437	677372	2900	18.5	4.0	220
80-200(I)B	6187113	16.924.231.4	413832	71	2900	15	4.0	198
80-250(I)	70100130	19.427.836.1	878068	626968	2900	37	4.0	330
80-250(I)A	65.493.5121.6	18.226.033.8	767059.5	616867	2900	30	4.0	315
80-250(I)B	6187113	16.924.231.4	656051	66	2900	22	4.0	315
80-315(I)	70100130	19.427.836.1	132125114	556667	2900	75	4.0	675
80-315(I)A	66.595123.6	18.526.434.3	119113103	556667	2900	55	4.0	535
80-315(I)B	6390117	17.52532.5	106.610192	65	2900	45	4.0	420
80-315(I)C	5882107	16.122.829.7	908576	63	2900	37	4.0	366
100-100	70100130	19.427.836.1	13.612.511	667675	2900	5.5	4.5	113
100-100A	62.689116	17.44732.2	11108.8	647474	2900	4	4.5	91
100-125	70100130	19.427.836.1	23.52014	707665	2900	11	4.5	169
100-125A	62.689116	17.424.732.2	191611	687463	2900	7.5	4.5	118
100-160	70100130	19.427.836.1	36.53224	707665	2900	15	4.5	191
100-160A	65.493.5121.6	18.226.033.8	322821	687467	2900	11	4.5	181
100-160B	60.686.6112.5	16.824.131.3	272418	72	2900	7.5	4.5	181
100-200	70100130	19.427.836.1	545042	657473	2900	22	4.0	245
100-200A	65.493.5121.6	18.226.033.8	47.54437	647372	2900	18.5	4.0	215
100-200B	6187113	16.924.231.4	413832	71	2900	15	4.0	193
100-250	70100130	19.427.836.1	878068	626968	2900	37	4.0	345
100-250A	65.493.5121.6	18.226.033.8	767059.5	616867	2900	30	4.0	330
100-250B	6187113	16.924.231.4	656051	66	2900	33	4.0	330
100-315	70100130	19.427.836.1	132125114	556667	2900	75	4.0	689
100-315A	66.595123.6	18.526.434.3	119113103	656667	2900	55	4.0	549
100-315B	6390117	17.52532.5	106.610192	65	2900	45	4.0	439
100-315C	5882107	16.122.829.7	908576	63	2900	37	4.0	385
100-100(I)	96160192	26.744.453.3	1412.510	647370	2900	11	4.5	115
100-125(I)	96160192	26.744.453.3	242014	627469	2900	15	4.5	168
100-125(I)A	84140168	23.33946.7	201712	647268	2900	11	4.5	168
100-160(I)	96160192	26.744.453.3	363227	697975	2900	22	5.6	210
100-160(I)A	84140168	23.33946.7	322823.5	667672	2900	18.5	5.0	210
100-200(I)	96160192	26.744.453.3	535045	697978	2900	37	5.2	402
100-200(I)A	84140168	23.33946.7	484540	647473	2900	30	4.5	395
100-200(I)B	60100120	16.727.833.3	434036	72	2900	22	4.5	360
100-250(I)	96160192	26.744.453.3	838072	657774	2900	55	4.8	560
100-250(I)A	84140168	23.33946.7	757265	607269	2900	45	4.5	420
100-250(I)B	60100120	16.727.833.3	686558	70	2900	37	4.5	400
100-350	60100120	16.727.833.3	153.6150142	725774	2900	90	4.0	950
100-350A	6187113	16.924.231.4	145.6142134	75	2900	75	4.0	830

型号	流量		扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
型号	m3/h	L/s	扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
100-350B	5882107	16.122.829.7	138.6135127	75	2900	55	4.0	600
125-100	96160192	26.744.453.3	112.512	82	2900	11	4.0	180
125-100A	86143172	23.939.747.8	10.4109.6	77	2900	7.5	4.0	125
125-125	96160192	26.744.453.3	22.62017	80	2900	15	4.0	220
125-125A	86143172	23.939.747.8	181613.6	77	2900	11	4.0	210
125-160	96160192	26.744.453.3	363228	78	2900	22	4.0	265
125-160A	90150180	2541.750	31.52824.5	76	2900	18.5	4.0	230
125-160B	83138166	21.738.346.1	272421	73	2900	15	4.0	215
125-200	96160192	26.744.453.3	555046	77	2900	37	5.5	395
125-200A	90150180	2541.750	48.44440.5	76	2900	30	5.5	380
125-200B	83138166	21.738.346.1	41.337.534.5	75	2900	22	5.5	320
125-250	96160192	26.744.453.3	878073	75	2900	55	5.0	580
125-250A	90150180	2541.750	767084	74	2900	45	5.5	490
125-250B	83138166	21.738.346.1	656055	73	2900	37	5.5	430
125-315	96160192	26.744.753.3	133125119	70	2900	90	5.0	790
125-315A	90150180	2541.750	117110104.6	70	2900	75	5.0	710
125-315B	86143172	23.939.747.8	106.410095.2	69	2900	75	5.0	705
125-315C	80.5134161	22.437.244.7	968886	67	2900	55	5.0	585
150-125	96160192	26.744.453.3	22.62417	667676	2900	11	4.0	210
150-125A	90150180	2541.750	181613.6	77	2900	7.5	4.0	130
150-160	96160192	26.744.453.3	363227	75	2900	22	4.0	270
150-160A	90150180	2541.750	322823.5	76	2900	18.5	4.0	230
150-160B	84140168	23.33946.7	272421	73	2900	15	4.0	220
150-200	140200260	38.955.672.2	13.812.510.6	687878	1450	15	3.0	265
150-200A	125176232.5	34.749.764.6	11108.5	667676	1450	11	3.0	244
150-200B	84140168	23.33946.7	413834	75	2900	22	4.0	275
150-250	140200260	38.955.672.2	21.82017	737977	1450	18.5	3.0	300
150-250A	129184.4240	35.851.266.7	18.51714.4	727876	1450	15	3.0	262
150-250B	117167217.5	32.546.460.4	15.21412	76	1450	11	3.0	241
150-315	140200260	38.955.672.2	33.83228	707873	1450	30	2.5	410
150-315A	131187243	36.451.967.5	29.52824.5	697777	1450	22	3.5	335
150-315B	121173225	33.548.162.5	252421	76	1450	18.5	3.5	315
150-350	96160192	26.744.453.3	153.6150142.8	80	2900	110	5.5	970
150-350A	90150180	2541.750	145.6142134.8	70	2900	90	5.2	790
150-350B	84140168	23.33946.7	138.8135127.8	657674	2900	75	5.5	705
150-400	140200260	38.955.672.2	535044	687571	1450	45	3.5	490
150-400A	131187243	36.451.967.5	46.64438.3	677470	1450	37	3.5	454
150-400B	122174226.5	33.948.362.9	403833	73	1450	30	3.5	435
150-400C	112160208	31.144.457.8	343228	71	1450	22	3.5	365
150-250(I)	120200240	33.355.666.7	878072	657674	2900	75	4.5	702
150-250(I)A	112187224	31.151.962.2	767063	647573	2900	55	4.5	561
150-250(I)B	104173208	28.948.157.8	656054	637472	2900	45	4.5	460
150-315(I)	120200240	33.355.666.7	133125120	587375	2900	110	4.5	980
150-315(I)A	112187224	31.151.962.2	116110105	577274	2900	90	4.5	800
150-315(I)B	104173208	28.948.157.8	1009591	557072	2900	75	4.5	724
200-200	140200260	38.955.672.2	13.812.510.6	687878	1450	15	3.0	265
200-200A	125179232.5	34.749.764.6	11108.5	667676	1450	11	3.0	244
200-250	140200260	38.955.672.2	21.82017	737977	1450	18.5	3.0	305
200-250A	129184.4240	35.851.266.7	18.51714.4	727876	1450	15	3.0	267
200-250B	117167217.5	32.546.460.4	15.21412	76	1450	11	3.0	246
200-315	140200260	38.955.672.2	33.83228	707878	1450	30	3.5	417
200-315A	131189243	36.451.967.5	29.52824.5	697777	1450	22	3.5	342
200-315B	121173225	33.648.162.5	252421	76	1450	18.5	3.5	322
200-400	140200260	38.955.672.2	535044	687571	1450	45	3.5	498
200-400A	131187243	36.451.967.5	46.64438.3	677470	1450	37	3.5	462
200-400B	122174226.5	33.948.562.9	403833	73	1450	30	3.5	443
200-400C	112160208	31.344.457.8	343228	71	1450	22	3.5	373
200-200(I)	280400520	77.8111.1144	13.412.510.5	708079	1450	22	4.0	382
200-200(I)A	250358465	69.490.4129.2	10.7108.5	687877	1450	18.5	4.0	346
200-250(I)	280400520	77.8111.1144	22.22014	758072	1450	30	4.0	475
200-250(I)A	250358465	69.499.4129.2	181411.2	737870	1450	20	4.0	405
200-250(I)B	226322419	62.889.4116.4	14.4137.3	707567	1450	18.5	4.0	387
200-315(I)	280400520	77.8111.4144	363226	738075	1450	55	4.0	675

型号	流量		扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
型号	m3/h	L/s	扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
200-315(I)A	262374486	72.8103.9135	31.52823	727974	1450	45	4.0	560
200-315(I)B	242346450	67.296.1125	272419.5	78	1450	37	4.0	535
200-400(I)	280400520	77.8111.4144	54.55039	758177	1450	75	4.0	830
200-400(I)A	262374486	72.8103.9135	484434	80	1450	75	4.0	830
200-400(I)B	242346450	67.296.1125	41.43829.6	78	1450	55	5.0	685
200-400(I)C	224320416	62.288.9115.6	34.93225	76	1450	45	5.0	580
250-250	350550650	97.2152.8180.5	222016	788281	1450	45	5.0	620
250-250A	300500600	18.3139166.7	18.31714	768080	1450	37	5.0	550
250-235	300500600	83.3139166.7	1412.511	737870	1480	22	4.5	410
250-300	300500600	83.3139166.7	222016	78	1480	37	4.5	550
250-315	350550650	97.2152.8180.5	343228	768079	1450	75	5.5	890
250-315A	300500600	83.3139166.7	29.5224	747877	1450	55	5.5	690
250-315B	260450520	72.2125144.4	252420	707472	1450	45	5.5	620
250-400	300500600	83.3139166.7	54.55039	72	1480	90	4.5	1530
300-235	540720900	150200250	20.51815.0	778174	1450	55	5.0	1075
300-235A	450600720	125166200	17.21512.5	747977	1450	45	5.0	970
300-235B	420540650	116.7150181	14.312.810.5	737870	1450	37	5.0	925
300-250	540720900	150200250	22.52017	808384	1450	55	6.0	1085
300-250A	450600720	136166200	19.51714	81	1450	45	6.0	980
300-300	540720900	150200250	322823	82	1480	75	5.0	1230
300-300A	450600720	125166200	27.52420	80	1480	75	5.0	1095
300-300B	420540650	116.7150181	242117	78	1480	55	5.0	980
300-315	540720900	150200250	353226	84	1480	90	4.5	1350
300-315A	460650800	127.8180222	31.52823.5	80	1480	75	4.5	1240
300-315B	420580700	116.7161194	272420.0	78	1480	55	4.5	1100
300-380	480720900	133.3200250	484434	84	970	132.0	5.0	1900
300-380A	444666833	123.3185231.4	41.43830	80	970	110.0	5.0	1700
300-380B	400614764	113.6170.6213.1	353235	78	970	90.0	5.0	1530
300-390	540720900	150200250	20.51815.5	788176	980	55	5.0	1300
300-390A	450600720	126167200	17.21512.8	777975	980	45	5.0	1220
300-390B	400540650	111150180	1412.511.5	747776	980	37	5.0	1100
300-400	450600720	125166200	555042.5	78	1480	110	5.0	1500
300-480	540720900	150200250	312824	798180	980	75	5.0	1500
300-480A	450600720	126166200	27.42420.0	788079	980	75	5.0	1280
300-480B	400540650	111150180	242117	79	980	55	5.0	1180
350-235	600800960	167222267	1412.510.5	808382	1480	37	4.5	1050
350-300	600800960	167222267	22.52017.5	798271	1480	55	4.5	1230
350-315	600800960	167222267	35.53228.5	84	1480	90	4.5	1650
350-400	600800960	167222267	555045.5	83	1480	160	4.5	1950
400-300	92010801300	228300361	232016	78	1480	90	6.0	1570
400-315	82010801300	205300344	36.53227	76	1480	132	6.0	1880
500-300	100012001450	277.8333403	232016.0	80	1480	110	6.0	1800
500-315	100012001450	278333403	34.53227	78	1480	160	6.0	2070

功能介绍

产品特点

3、轴封采用机械密封或机械密封组合，采用钛合金密封环、中型耐高温机械密封和采用硬质合金材质，密封，能有效地延长机械密封的使用寿命。

4、安装检修方便，无需拆动管道路系统，只要卸下泵联体座螺母即可抽出全部转子部件。

5、可根据使用要求即流量和扬程的需要采用泵的串、并联运行方式。

6、可根据管路布置的要求采用泵的竖式和横式安装。

产品概述

ISG型立式管道离心泵的详细资料：

性能参数

ISG型立式管道离心泵主要用途:

4、YG型立式管道油泵，供输送汽油、煤油、柴油等石油产品，被输送介质温度为-20℃~+120℃。

工作条件:

2、环境温度<40℃，相对湿度<95％。<>

3、所输送介质中固体颗粒体积含量不过单位体积的0．1％，粒度<0．2mm。<>

注：如使用介质为带有细小颗粒，请在订货时说明，以便厂家采用式机械密封。

型号意义：

管道泵性能参数：

型号	流量		扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
型号	m3/h	L/s	扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
15-80	1.11.52.0	0.30.420.55	8.587	263434	2800	0.18	2.3	17
20-110	1.82.53.3	0.50.690.91	161513.5	253435	2800	0.37	2.3	25
20-160	1.82.53.3	0.50.690.91	333230	192523	2900	0.75	2.3	29
25-110	2.845.2	0.781.111.44	161513.5	344241	2900	0.55	2.3	26
25-125	2.845.2	0.781.111.44	20.62018	283635	2900	0.75	2.3	28
25-125A	2.53.64.6	0.691.01.28	171614.4	35	2900	0.55	2.3	27
25-160	2.845.2	0.781.111.44	333230	243233	2900	1.5	2.3	39
25-160A	2.63.74.9	0.121.031.36	292826	31	2900	1.1	2.3	34
32-100	4.5	12.5	12.5	44	2900	0.55	2.0	27
32-100(I)	4.46.38.3	1.221.752.32	13.212.511.3	485453	2900	0.75	2.0	32
32-125	3.556.5	0.971.391.8	222018	404442	2900	0.75	2.3	28
32-125A	3.14.55.8	0.861.251.61	17.61614.4	43	2900	0.55	2.3	28
32-160	6.5	5	32	44	2900	1.5	2.3	39
32-160A	4	1.1	25	34	2900	1.1	2.0	38
32-160(I)	4.46.38.3	1.221.752.32	33.23230.2	344042	2900	2.2	2.0	4.7
32-200	4.5	12.5	50	32	2900	3	2.0	55
32-200(I)	4.46.38.3	1.221.752.32	50.55048	263335	2900	4	2.0	43
32-200A	2.845.2	0.781.111.44	44.64442.7	344042	2900	2.2	2.0	74
40-100	4.46.38.3	1.221.752.31	13.212.511.3	485453	2900	0.55	2.3	32
40-100A	3.95.67.4	1.081.562.06	10.6109	52	2900	0.37	2.3	32
40-125	4.46.38.3	1.221.752.31	212018	414643	2900	1.1	2.3	34
40-125A	3.95.67.4	1.081.562.06	17.61614.4	404541	2900	0.75	2.3	33
40-160	4.46.38.3	1.221.752.31	333230	354040	2900	2.2	2.3	47
40-160A	4.15.97.8	1.141.642.17	292826.3	343939	2900	1.5	2.3	43
40-160B	3.85.57.2	1.061.532.0	25.52422.5	343837	2900	1.1	2.3	38
40-200	4.46.38.3	1.221.752.31	515048	263332	2900	4.0	2.3	74
40-200A	4.15.97.8	1.141.642.17	454442	263130	2900	3.0	2.3	62
40-200B	3.75.37.0	1.031.471.94	383634.5	29	2900	2.2	2.3	52
40-250	4.46.38.3	1.221.752.31	828074	242828	2900	7.5	2.3	105
40-250A	4.15.97.8	1.141.642.17	727065	242827	2900	5.5	2.3	98
40-250B	3.85.57.0	1.061.531.94	61.56056	232726	2900	4.0	2.3	77
40-100(I)	8.812.516.3	2.443.474.53	13.212.511.3	556260	2900	1.1	2.3	34
40-100(I)A	81114.5	2.223.054.03	10.6109	60	2900	0.75	2.3	32
40-125(I)	8.812.516.3	2.443.474.53	21.22017.8	495857	2900	1.5	2.3	38
40-125(I)A	81114.5	2.223.054.03	171614	57	2900	1.1	2.3	33
40-160(I)	8.812.516.3	2.443.474.53	333230	455251	2900	3.0	2.3	56
40-160(I)A	8.211.715.2	2.283.254.22	292826	445150	2900	2.2	2.3	47
40-160(I)B	7.310.413.5	2.382.893.75	232220.5	50	2900	1.5	2.3	43
40-200(I)	8.812.516.3	2.443.474.53	51.25048	384646	2900	5.5	2.3	85
40-200(I)A	8.311.715.3	2.313.254.25	45.04442	374545	2900	4.0	2.3	75
40-200(I)B	7.510.613.8	2.082.943.83	373634	44	2900	3	2.3	63
40-250(I)	8.812.516.3	2.443.474.53	81.28077.5	313840	2900	11	2.3	145
40-250(I)A	8.211.615.2	2.283.224.22	71.07068	38	2900	7.5	2.3	95
40-250(I)B	7.610.814	2.113.03.89	61.46058	37	2900	5.5	2.3	94
40-250(I)C	7.110.013.1	1.972.783.64	53.25250.4	36	2900	5.5	2.3	88
50-100	8.812.516.3	2.443.474.53	13.612.511.3	556260	2900	1.1	2.3	36
50-100A	81114.5	2.223.054.03	11109	60	2900	0.75	2.3	35
50-125	8.812.516.3	2.443.474.53	21.52017.8	495857	2900	1.5	2.3	43
50-125A	81114.5	2.223.054.03	171614	57	2900	1.1	2.3	38
50-160	8.812.516.3	2.443.474.53	333230	455230	2900	3.0	2.3	59
50-160A	8.211.715.2	2.283.254.22	292826	445150	2900	2.2	2.3	51
50-160B	7.310.413.5	2.382.893.75	232220.5	50	2900	1.5	2.3	47
50-200	8.812.516.3	2.443.474.53	525048	384646	2900	5.5	2.3	101
50-200A	8.311.715.3	2.313.254.25	45.84442	374545	2900	4.0	2.3	80
50-200B	7.510.613.8	2.082.943.83	373634	44	2900	3	2.3	68
50-250	8.812.516.3	2.443.474.53	828077.5	293840	2900	11	2.3	160
50-250A	8.211.615.2	2.283.224.22	71.57068	38	2900	7.5	2.3	115
50-250B	7.610.814	2.113.03.89	61.46058	37	2900	5.5	2.3	114
50-250C	7.110.013.1	1.972.783.64	53.25250.4	36	2900	5.5	2.3	108
50-100(I)	17.52532.5	4.866.949.03	13.712.510.5	676969	2900	1.5	2.5	41
50-100(I)A	15.622.329	4.36.198.1	11108.4	656768	2900	1.1	2.5	36
50-125(I)	17.52532.5	4.866.949.03	21.52018	606867	2900	3.0	2.5	56
50-125(I)A	15.622.329	4.336.198.1	171613.6	586665	2900	2.2	2.5	48

型号	流量		扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
型号	m3/h	L/s	扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
50-160(I)	17.52532.5	4.686.949.03	34.43227.5	546360	2900	4.0	2.5	72
50-160(I)A	16.423.430.4	4.566.58.44	302824	546259	2900	3.0	2.5	71
50-160(I)B	15.021.628	4.176.07.78	262420.6	58	2900	2.2	2.5	59
50-200(I)	17.52532.5	4.866.949.03	52.75045.5	495859	2900	7.5	2.5	108
50-200(I)A	16.423.530.5	4.566.538.47	46.44440	485758	2900	5.5	2.5	107
50-200(I)B	15.221.828.3	4.226.067.86	403834.5	55	2900	4	2.5	100
50-250(I)	17.52532.5	4.866.949.03	828076.5	395052	2900	15.0	2.5	175
50-250(I)A	16.423.430.5	4.566.58.47	71.57067	395052	2900	11.0	2.5	165
50-250(I)B	1521.628	4.176.07.78	616057.4	384954	2900	7.5	2.5	165
50-315(I)	17.52532.5	4.866.949.03	128125122	304044	2900	30.0	2.5	310
50-315(I)A	16.623.731	4.616.588.6	115113110	304044	2900	22	2.5	245
50-315(I)B	15.722.529.2	4.366.258.0	10310198	39	2900	18.5	2.5	215
50-315(I)C	14.420.626.8	4.05.727.44	868583	38	2900	15.0	2.5	195
65-100	17.52532.5	4.866.949.03	13.712.510.5	676969	2900	1.5	2.5	46
65-100A	15.622.329	4.36.198.1	11108.4	656768	2900	1.1	2.5	41
65-125	17.52532.5	4.866.949.03	21.62018	606867	2900	3	2.5	58
65-125A	15.622.329	4.336.198.1	171614.4	586665	2900	2.2	2.5	49
65-160	17.52532.5	4.866.949.03	34.43227.5	546360	2900	4.0	2.5	75
65-160A	16.423.430.4	4.566.58.44	302824	546259	2900	3	2.5	75
65-160B	15.021.628	4.176.07.78	262420.6	58	2900	2.2	2.5	63
65-200	17.52532.5	4.866.949.03	52.75045.5	495859	2900	7.5	2.5	107
65-200A	16.423.530.5	4.566.538.47	46.44440	485758	2900	5.5	2.5	107
65-200B	15.221.828.3	4.226.067.86	403834.5	55	2900	4	2.5	100
65-250	17.52532.5	4.866.949.03	828076.5	395052	2900	15	2.5	180
65-250A	16.423.430.5	4.566.58.47	71.57067	395052	2900	11	2.5	170
65-250B	1521.628	4.176.07.78	61 60 57.4	38 49 54	2900	7.5	2.5	170
65-315	17.5 25 32.5	4.86 6.94 9.03	127 125 122	32 40 44	2900	30	2.5	320
65-315A	16.6 23.7 31	4.61 6.58 8.6	115 113 110	32 40 44	2900	22	2.5	255
65-315B	15.7 22.5 29.2	4.36 6.25 8.0	103 101 98	39	2900	18.5	2.5	225
65-315C	14.4 20.6 26.8	4.0 5.72 7.44	86 85 83	38	2900	15	2.5	205
65-100(I)	35 50 65	9.72 13.9 18.1	13.8 12.5 10	67 73 70	2900	3	3.0	63
65-100(I)A	31.3 44.7 58	8.7 12.4 16.1	11 10 8	66 72 69	2900	2.2	3.0	53
65-125(I)	35 50 65	9.72 13.9 18.1	22 20 17	67 72.5 70	2900	5.5	3.0	99
65-125(I)A	31.3 45 58	8.7 12.5 16.1	17.5 16 13.6	66 71 69	2900	4	3.0	78
65-160(I)	35 50 65	9.72 13.9 18.1	35 32 28	63 71 70	2900	7.5	3.0	103
65-160(I)A	32.7 46.7 61	9.1 13 16.9	30.6 28 24	62 70 69	2900	5.5	3.0	103
65-160(I)B	30.3 43.3 56.3	8.4 12.0 15.6	26 24 21	69	2900	4	3.0	97
65-200(I)	35 50 65	9.72 13.9 18.1	53.5 50 46	55 67 68	2900	15	3.0	176
65-200(I)A	32.8 47 61	9.1 13.1 16.9	47 44 40	54 66 67	2900	11	3.0	166
65-200(I)B	30.5 43.5 56.6	8.5 12.1 15.7	40.6 38 33.4	65	2900	7.5	3.0	114
65-250(I)	35 50 65	9.72 13.9 18.1	83 80 72	52 59 60	2900	22	3.0	235
65-250(I)A	32.5 46.7 61	9.0 13.0 16.9	73 70 63	52 59 60	2900	18.5	3.0	205
65-250(I)B	30 43.3 56	8.3 12 15.6	62 60 54	58	2900	15	3.0	180
65-315(I)	35 50 65	9.72 13.9 18.1	128 125 121	44 54 57	2900	37	3.0	350
65-315(I)A	32.5 46.5 60.5	9.0 12.9 16.8	112.6 110 106.4	43 54 57	2900	30	3.0	335
65-315(I)B	31 44.5 58	8.6 12.4 16.1	102.5 100 98	53	2900	30	3.0	335
65-315(I)C	29 41 53.6	8.1 11.4 14.9	87 85 83	51	2900	22	3.0	270
80-100	35 50 65	9.72 13.9 18.1	13.8 12.5 10	67 73 70	2900	3	3.0	63
80-100A	31.3 44.7 58	8.7 12.5 16.1	11 10 8	66 72 69	2900	2.2	3.0	54
80-125	35 50 65	9.72 13.9 18.1	22 20 17	67 72.5 70	2900	5.5	3.0	99
80-125A	31.3 45 58	8.7 12.5 16.1	17.5 16 13.6	66 71 69	2900	4	3.0	79

型号	流量		扬程 (m)	效率 (%)	转速 (r/min)	电机功率 (kw)	汔蚀余量 (NPSH)r	重量 (kg)
型号	m3/h	L/s	扬程 (m)	效率 (%)	转速 (r/min)	电机功率 (kw)	汔蚀余量 (NPSH)r	重量 (kg)
80-160	35 50 65	9.72 13.9 18.1	35 32 28	63 71 70	2900	7.5	3.0	105
80-160A	32.7 46.7 61	9.1 13.0 16.9	30.6 28 24	62 70 69	2900	5.5	3.0	105
80-160B	30.3 43.3 56.3	8.4 12.0 15.6	26 24 21	69	2900	4	3.0	98
80-200	35 50 65	9.72 13.9 18.1	53.5 50 46	55 67 68	2900	15	3.0	175
80-200A	32.84761	9.113.116.9	474440	546667	2900	11	3.0	165
80-200B	30.543.556.6	8.512.115.7	40.63833.4	65	2900	7.5	3.0	115
80-250	355065	9.7213.918.1	838072	525960	2900	22	3.0	240
80-250A	32.546.761	9.013.016.9	737063	525960	2900	18.5	3.0	210
80-250B	3043.356	8.312.015.6	626054	58	2900	15	3.0	185
80-315	355065	9.7213.918.1	128125122	435457	2900	37	3.0	355
80-315A	32.546.560.5	9.012.916.8	112.6110107.4	435457	2900	30	3.0	340
80-315B	3144.558	8.612.416.1	102.510098	53	2900	30	3.0	340
80-315C	294153.6	8.111.414.9	988583	51	2900	22	3.0	275
80-350	355065	9.7213.918.1	146150142	556667	2900	55	3.0	570
80-350A	3144.558	8.612.416.1	138.4142134.8	65	2900	45	3.0	470
80-350B	294153.6	8.111.414.9	131.4135127.8	63	2900	37	3.0	440
80-100(I)	70100130	19.427.836.1	13.612.511	667675	2900	5.5	4.5	108
80-100(I)A	62.689116	17.424.732.2	11108.8	647474	2900	4	4.5	87
80-125(I)	70100130	19.427.836.1	23.52014	707665	2900	11	4.5	163
80-125(I)A	62.689116	17.424.732.2	191611	687465	2900	7.5	4.5	113
80-160(I)	70100130	19.427.836.1	36.53224	707665	2900	15	4.5	184
80-160(I)A	65.493.5121.6	18.226.033.8	322821	687467	2900	11	4.5	174
80-160(I)B	60.686.6112.5	16.824.131.3	722418	72	2900	7.5	4.5	174
80-200(I)	70100130	19.427.836.1	545042	657473	2900	22	4.0	251
80-200(I)A	65.493.5121.6	18.226.033.8	47.54437	677372	2900	18.5	4.0	220
80-200(I)B	6187113	16.924.231.4	413832	71	2900	15	4.0	198
80-250(I)	70100130	19.427.836.1	878068	626968	2900	37	4.0	330
80-250(I)A	65.493.5121.6	18.226.033.8	767059.5	616867	2900	30	4.0	315
80-250(I)B	6187113	16.924.231.4	656051	66	2900	22	4.0	315
80-315(I)	70100130	19.427.836.1	132125114	556667	2900	75	4.0	675
80-315(I)A	66.595123.6	18.526.434.3	119113103	556667	2900	55	4.0	535
80-315(I)B	6390117	17.52532.5	106.610192	65	2900	45	4.0	420
80-315(I)C	5882107	16.122.829.7	908576	63	2900	37	4.0	366
100-100	70100130	19.427.836.1	13.612.511	667675	2900	5.5	4.5	113
100-100A	62.689116	17.44732.2	11108.8	647474	2900	4	4.5	91
100-125	70100130	19.427.836.1	23.52014	707665	2900	11	4.5	169
100-125A	62.689116	17.424.732.2	191611	687463	2900	7.5	4.5	118
100-160	70100130	19.427.836.1	36.53224	707665	2900	15	4.5	191
100-160A	65.493.5121.6	18.226.033.8	322821	687467	2900	11	4.5	181
100-160B	60.686.6112.5	16.824.131.3	272418	72	2900	7.5	4.5	181
100-200	70100130	19.427.836.1	545042	657473	2900	22	4.0	245
100-200A	65.493.5121.6	18.226.033.8	47.54437	647372	2900	18.5	4.0	215
100-200B	6187113	16.924.231.4	413832	71	2900	15	4.0	193
100-250	70100130	19.427.836.1	878068	626968	2900	37	4.0	345
100-250A	65.493.5121.6	18.226.033.8	767059.5	616867	2900	30	4.0	330
100-250B	6187113	16.924.231.4	656051	66	2900	33	4.0	330
100-315	70100130	19.427.836.1	132125114	556667	2900	75	4.0	689
100-315A	66.595123.6	18.526.434.3	119113103	656667	2900	55	4.0	549
100-315B	6390117	17.52532.5	106.610192	65	2900	45	4.0	439
100-315C	5882107	16.122.829.7	908576	63	2900	37	4.0	385
100-100(I)	96160192	26.744.453.3	1412.510	647370	2900	11	4.5	115
100-125(I)	96160192	26.744.453.3	242014	627469	2900	15	4.5	168
100-125(I)A	84140168	23.33946.7	201712	647268	2900	11	4.5	168
100-160(I)	96160192	26.744.453.3	363227	697975	2900	22	5.6	210
100-160(I)A	84140168	23.33946.7	322823.5	667672	2900	18.5	5.0	210
100-200(I)	96160192	26.744.453.3	535045	697978	2900	37	5.2	402
100-200(I)A	84140168	23.33946.7	484540	647473	2900	30	4.5	395
100-200(I)B	60100120	16.727.833.3	434036	72	2900	22	4.5	360
100-250(I)	96160192	26.744.453.3	838072	657774	2900	55	4.8	560
100-250(I)A	84140168	23.33946.7	757265	607269	2900	45	4.5	420
100-250(I)B	60100120	16.727.833.3	686558	70	2900	37	4.5	400
100-350	60100120	16.727.833.3	153.6150142	725774	2900	90	4.0	950
100-350A	6187113	16.924.231.4	145.6142134	75	2900	75	4.0	830

型号	流量		扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
型号	m3/h	L/s	扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
100-350B	5882107	16.122.829.7	138.6135127	75	2900	55	4.0	600
125-100	96160192	26.744.453.3	112.512	82	2900	11	4.0	180
125-100A	86143172	23.939.747.8	10.4109.6	77	2900	7.5	4.0	125
125-125	96160192	26.744.453.3	22.62017	80	2900	15	4.0	220
125-125A	86143172	23.939.747.8	181613.6	77	2900	11	4.0	210
125-160	96160192	26.744.453.3	363228	78	2900	22	4.0	265
125-160A	90150180	2541.750	31.52824.5	76	2900	18.5	4.0	230
125-160B	83138166	21.738.346.1	272421	73	2900	15	4.0	215
125-200	96160192	26.744.453.3	555046	77	2900	37	5.5	395
125-200A	90150180	2541.750	48.44440.5	76	2900	30	5.5	380
125-200B	83138166	21.738.346.1	41.337.534.5	75	2900	22	5.5	320
125-250	96160192	26.744.453.3	878073	75	2900	55	5.0	580
125-250A	90150180	2541.750	767084	74	2900	45	5.5	490
125-250B	83138166	21.738.346.1	656055	73	2900	37	5.5	430
125-315	96160192	26.744.753.3	133125119	70	2900	90	5.0	790
125-315A	90150180	2541.750	117110104.6	70	2900	75	5.0	710
125-315B	86143172	23.939.747.8	106.410095.2	69	2900	75	5.0	705
125-315C	80.5134161	22.437.244.7	968886	67	2900	55	5.0	585
150-125	96160192	26.744.453.3	22.62417	667676	2900	11	4.0	210
150-125A	90150180	2541.750	181613.6	77	2900	7.5	4.0	130
150-160	96160192	26.744.453.3	363227	75	2900	22	4.0	270
150-160A	90150180	2541.750	322823.5	76	2900	18.5	4.0	230
150-160B	84140168	23.33946.7	272421	73	2900	15	4.0	220
150-200	140200260	38.955.672.2	13.812.510.6	687878	1450	15	3.0	265
150-200A	125176232.5	34.749.764.6	11108.5	667676	1450	11	3.0	244
150-200B	84140168	23.33946.7	413834	75	2900	22	4.0	275
150-250	140200260	38.955.672.2	21.82017	737977	1450	18.5	3.0	300
150-250A	129184.4240	35.851.266.7	18.51714.4	727876	1450	15	3.0	262
150-250B	117167217.5	32.546.460.4	15.21412	76	1450	11	3.0	241
150-315	140200260	38.955.672.2	33.83228	707873	1450	30	2.5	410
150-315A	131187243	36.451.967.5	29.52824.5	697777	1450	22	3.5	335
150-315B	121173225	33.548.162.5	252421	76	1450	18.5	3.5	315
150-350	96160192	26.744.453.3	153.6150142.8	80	2900	110	5.5	970
150-350A	90150180	2541.750	145.6142134.8	70	2900	90	5.2	790
150-350B	84140168	23.33946.7	138.8135127.8	657674	2900	75	5.5	705
150-400	140200260	38.955.672.2	535044	687571	1450	45	3.5	490
150-400A	131187243	36.451.967.5	46.64438.3	677470	1450	37	3.5	454
150-400B	122174226.5	33.948.362.9	403833	73	1450	30	3.5	435
150-400C	112160208	31.144.457.8	343228	71	1450	22	3.5	365
150-250(I)	120200240	33.355.666.7	878072	657674	2900	75	4.5	702
150-250(I)A	112187224	31.151.962.2	767063	647573	2900	55	4.5	561
150-250(I)B	104173208	28.948.157.8	656054	637472	2900	45	4.5	460
150-315(I)	120200240	33.355.666.7	133125120	587375	2900	110	4.5	980
150-315(I)A	112187224	31.151.962.2	116110105	577274	2900	90	4.5	800
150-315(I)B	104173208	28.948.157.8	1009591	557072	2900	75	4.5	724
200-200	140200260	38.955.672.2	13.812.510.6	687878	1450	15	3.0	265
200-200A	125179232.5	34.749.764.6	11108.5	667676	1450	11	3.0	244
200-250	140200260	38.955.672.2	21.82017	737977	1450	18.5	3.0	305
200-250A	129184.4240	35.851.266.7	18.51714.4	727876	1450	15	3.0	267
200-250B	117167217.5	32.546.460.4	15.21412	76	1450	11	3.0	246
200-315	140200260	38.955.672.2	33.83228	707878	1450	30	3.5	417
200-315A	131189243	36.451.967.5	29.52824.5	697777	1450	22	3.5	342
200-315B	121173225	33.648.162.5	252421	76	1450	18.5	3.5	322
200-400	140200260	38.955.672.2	535044	687571	1450	45	3.5	498
200-400A	131187243	36.451.967.5	46.64438.3	677470	1450	37	3.5	462
200-400B	122174226.5	33.948.562.9	403833	73	1450	30	3.5	443
200-400C	112160208	31.344.457.8	343228	71	1450	22	3.5	373
200-200(I)	280400520	77.8111.1144	13.412.510.5	708079	1450	22	4.0	382
200-200(I)A	250358465	69.490.4129.2	10.7108.5	687877	1450	18.5	4.0	346
200-250(I)	280400520	77.8111.1144	22.22014	758072	1450	30	4.0	475
200-250(I)A	250358465	69.499.4129.2	181411.2	737870	1450	20	4.0	405
200-250(I)B	226322419	62.889.4116.4	14.4137.3	707567	1450	18.5	4.0	387
200-315(I)	280400520	77.8111.4144	363226	738075	1450	55	4.0	675

型号	流量		扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
型号	m3/h	L/s	扬程(m)	效率(%)	转速(r/min)	电机功率(kw)	汔蚀余量(NPSH)r	重量(kg)
200-315(I)A	262374486	72.8103.9135	31.52823	727974	1450	45	4.0	560
200-315(I)B	242346450	67.296.1125	272419.5	78	1450	37	4.0	535
200-400(I)	280400520	77.8111.4144	54.55039	758177	1450	75	4.0	830
200-400(I)A	262374486	72.8103.9135	484434	80	1450	75	4.0	830
200-400(I)B	242346450	67.296.1125	41.43829.6	78	1450	55	5.0	685
200-400(I)C	224320416	62.288.9115.6	34.93225	76	1450	45	5.0	580
250-250	350550650	97.2152.8180.5	222016	788281	1450	45	5.0	620
250-250A	300500600	18.3139166.7	18.31714	768080	1450	37	5.0	550
250-235	300500600	83.3139166.7	1412.511	737870	1480	22	4.5	410
250-300	300500600	83.3139166.7	222016	78	1480	37	4.5	550
250-315	350550650	97.2152.8180.5	343228	768079	1450	75	5.5	890
250-315A	300500600	83.3139166.7	29.5224	747877	1450	55	5.5	690
250-315B	260450520	72.2125144.4	252420	707472	1450	45	5.5	620
250-400	300500600	83.3139166.7	54.55039	72	1480	90	4.5	1530
300-235	540720900	150200250	20.51815.0	778174	1450	55	5.0	1075
300-235A	450600720	125166200	17.21512.5	747977	1450	45	5.0	970
300-235B	420540650	116.7150181	14.312.810.5	737870	1450	37	5.0	925
300-250	540720900	150200250	22.52017	808384	1450	55	6.0	1085
300-250A	450600720	136166200	19.51714	81	1450	45	6.0	980
300-300	540720900	150200250	322823	82	1480	75	5.0	1230
300-300A	450600720	125166200	27.52420	80	1480	75	5.0	1095
300-300B	420540650	116.7150181	242117	78	1480	55	5.0	980
300-315	540720900	150200250	353226	84	1480	90	4.5	1350
300-315A	460650800	127.8180222	31.52823.5	80	1480	75	4.5	1240
300-315B	420580700	116.7161194	272420.0	78	1480	55	4.5	1100
300-380	480720900	133.3200250	484434	84	970	132.0	5.0	1900
300-380A	444666833	123.3185231.4	41.43830	80	970	110.0	5.0	1700
300-380B	400614764	113.6170.6213.1	353235	78	970	90.0	5.0	1530
300-390	540720900	150200250	20.51815.5	788176	980	55	5.0	1300
300-390A	450600720	126167200	17.21512.8	777975	980	45	5.0	1220
300-390B	400540650	111150180	1412.511.5	747776	980	37	5.0	1100
300-400	450600720	125166200	555042.5	78	1480	110	5.0	1500
300-480	540720900	150200250	312824	798180	980	75	5.0	1500
300-480A	450600720	126166200	27.42420.0	788079	980	75	5.0	1280
300-480B	400540650	111150180	242117	79	980	55	5.0	1180
350-235	600800960	167222267	1412.510.5	808382	1480	37	4.5	1050
350-300	600800960	167222267	22.52017.5	798271	1480	55	4.5	1230
350-315	600800960	167222267	35.53228.5	84	1480	90	4.5	1650
350-400	600800960	167222267	555045.5	83	1480	160	4.5	1950
400-300	92010801300	228300361	232016	78	1480	90	6.0	1570
400-315	82010801300	205300344	36.53227	76	1480	132	6.0	1880
500-300	100012001450	277.8333403	232016.0	80	1480	110	6.0	1800
500-315	100012001450	278333403	34.53227	78	1480	160	6.0	2070

自吸泵系列

管道泵系列

潜水排污泵

离心泵系列

消防泵系列

化工泵系列

液下泵系列

真空泵系列

螺杆泵系列

控制柜系列

柴油机水泵

成套给水设备

渣浆泵系列

脱硫泵系列

砂砾泵系列

纸浆泵/泥浆泵系列

挖泥泵系列

压滤机配套泵系列

大流量泵双吸泵系列

多级泵系列

ISG管道离心泵
