产品特点
该泵可采用分体式与直联式及便拆式三种结构，按类型又分为清水型、污水型两大系列，于国内同类产品相比，具有结构简单紧凑、振动小、自吸性能好、排污能力强、节能、使用维修方便等优点，具有广阔的应用市场和发展前景。
产品概述
ZSL强自吸、高扬程、大流量、直联式双吸自吸泵是本公司根据市场需求而开发的一种全新结构的节能型双吸自吸泵产品。取得了国家发明专利（200910196736.X）、实用新型专利（200920210414.1），ZSL强自吸、高扬程、大流量、直联式双吸自吸泵泵解决了单吸式自吸泵的轴向拉力大、自吸时间长、效率低等问题，具有吸程高、自吸时间短、使用效率高、节能效果显著、运行平稳，使用寿命长等优点。AYZS清水型适用于输送清水或轻度污水的场合，效率比污水型高，自吸性能好。AYZSW污水型泵集自吸和无堵塞排污于一体，采用轴向回流外混式，并通过泵体、叶轮流道的设计，既不需要安装底阀和灌引水，又可吸排含有颗粒固体和纤维等杂质的液体，可广泛适用于市政排污工程、荷塘养殖、轻工、造纸、食品、化工、电业、纤维、浆料和混合悬浮等化工介质理想的杂质泵。AYZSC型柴油机式双吸自吸泵适用于各种复杂的应急抢险、消防等场合，不受电源、使用场地等因素的影响，可以移动作业，灵活性高。
性能参数

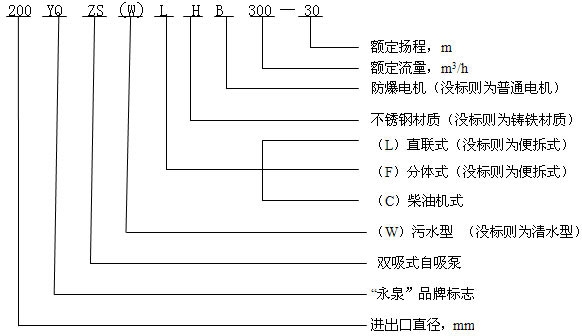

型号说明
ZSL强自吸、高扬程、大流量、直联式双吸自吸泵的使用范围
1、环境温度≤50℃，介质温度≤80℃特殊要求可达200 ℃ 。
2、介质PH值铸铁材质为6～9，不锈钢为2～13。
3、AYZSW污水型双吸式自吸泵使用介质重度不过1240kg/m3,污水型同型号泵扬程低于清水型10% 。
4、自吸高度不能过规定值5～7米 ，吸入管长度为≤10m。
5、AYZSW污水型双吸式自吸泵通过能力悬浮颗粒直径约为泵口径的20%，纤维长度泵口径的5倍。

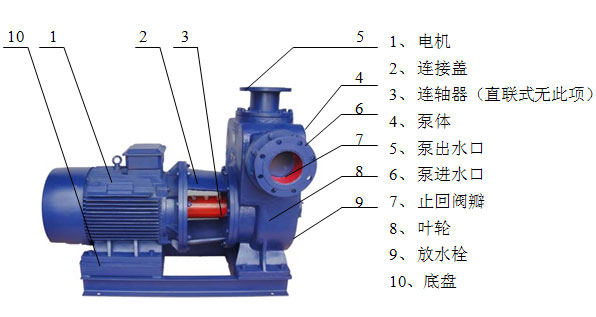

ZSL强自吸、高扬程、大流量、直联式双吸自吸泵的水泵结构图
参数图表
序号 | 型号 | 流量 | 扬程 | 效率 | 功率 | 转速n | 汽蚀余量m | 自吸高度m | 自吸时间（S/5m） | 重量 |
1 | 100ZSL80-10-4.2-4 | 80 | 10 | 68.1 | 4 | 1450 | 2.0 | 5.5 | 100 | 230 |
2 | 100ZSL100-12-5.5-4 | 100 | 12 | 74.3 | 5.5 | 1450 | 2.5 | 6.0 | 100 | 260 |
3 | 100ZSL100-15-7.5-4 | 100 | 15 | 68.1 | 7.5 | 1450 | 2.5 | 6.0 | 100 | 280 |
4 | 100ZSL100-20-11-4 | 100 | 20 | 66.1 | 11 | 1450 | 2.5 | 6.5 | 100 | 320 |
5 | 100ZSL100-25-15-4 | 100 | 25 | 60.6 | 15 | 1450 | 2.5 | 7.0 | 100 | 330 |
6 | 100ZSL100-30-18.5-4 | 100 | 30 | 58.9 | 18.5 | 1450 | 2.5 | 7.0 | 100 | 360 |
7 | 100ZSL100-40-22-2 | 100 | 40 | 66.1 | 22 | 2900 | 2.5 | 7.0 | 100 | 360 |
8 | 100ZSL100-50-30-2 | 100 | 50 | 60.6 | 30 | 2900 | 2.5 | 7.0 | 100 | 440 |
9 | 100ZSL100-60-37-2 | 100 | 60 | 63.1 | 37 | 2900 | 2.5 | 7.0 | 100 | 450 |
10 | 100ZSL100-70-45-2 | 100 | 70 | 60.6 | 45 | 2900 | 2.5 | 7.0 | 100 | 530 |
11 | 100ZSL100-80-45-2 | 100 | 80 | 64.6 | 45 | 2900 | 2.5 | 5.5 | 100 | 540 |
12 | 150ZSL150-10-7.5-4 | 150 | 10 | 68.1 | 7.5 | 1450 | 2.5 | 6.0 | 100 | 330 |
13 | 150ZSL150-15-11-4 | 150 | 15 | 69.7 | 11 | 1450 | 2.5 | 6.0 | 100 | 340 |
14 | 150ZSL150-20-15-4 | 150 | 20 | 68.1 | 15 | 1450 | 2.5 | 6.5 | 100 | 370 |
15 | 150ZSL150-25-18.5-4 | 150 | 25 | 69.0 | 18.5 | 1450 | 2.5 | 6.5 | 100 | 420 |
16 | 150ZSL150-30-22-4 | 150 | 30 | 69.7 | 22 | 1450 | 2.5 | 7.0 | 100 | 480 |
17 | 150ZSL150-35-30-4 | 150 | 35 | 63.6 | 30 | 1450 | 2.5 | 7.0 | 100 | 660 |
18 | 150ZSL150-40-37-4 | 150 | 40 | 63.6 | 37 | 1450 | 2.5 | 7.0 | 100 | 680 |
19 | 150ZSL150-50-45-4 | 150 | 50 | 67.2 | 45 | 1450 | 2.5 | 7.0 | 100 | 720 |
20 | 150ZSL150-40-37-2 | 150 | 40 | 63.1 | 37 | 2900 | 2.5 | 7.0 | 100 | 480 |
21 | 150ZSL150-50-45-2 | 150 | 50 | 60.6 | 45 | 2900 | 2.5 | 7.0 | 100 | 540 |
22 | 150ZSL150-65-55-2 | 150 | 65 | 64.4 | 55 | 2900 | 2.5 | 7.0 | 100 | 720 |
23 | 150ZSL150-80-75-2 | 150 | 80 | 62.3 | 75 | 2900 | 2.5 | 7.0 | 100 | 880 |
24 | 150ZSL200-11-11-4 | 200 | 11 | 68.1 | 11 | 1450 | 2.5 | 5.5 | 100 | 340 |
25 | 150ZSL200-15-15-4 | 200 | 15 | 68.1 | 15 | 1450 | 2.5 | 6.0 0 | 100 | 370 |
26 | 150ZSL200-18-18.5-4 | 200 | 18 | 66.3 | 18.5 | 1450 | 2.5 | 6.0 | 100 | 420 |
27 | 150ZSL200-22-22-4 | 200 | 22 | 68.1 | 22 | 1450 | 2.5 | 6.5 | 100 | 480 |
28 | 150ZSL200-27-30-4 | 200 | 27 | 65.4 | 30 | 1450 | 2.5 | 7.0 | 100 | 660 |
29 | 150ZSL200-32-37-4 | 200 | 32 | 62.8 | 37 | 1450 | 2.5 | 7.0 | 100 | 680 |
30 | 150ZSL200-40-45-4 | 200 | 40 | 63.7 | 45 | 1450 | 2.5 | 7.0 | 100 | 720 |
31 | 150ZSL200-50-55-4 | 200 | 50 | 65.2 | 45 | 1450 | 2.5 | 7.0 | 100 | 860 |
32 | 150ZSL200-40-45-2 | 200 | 40 | 64.6 | 45 | 2900 | 2.5 | 7.0 | 100 | 540 |
33 | 150ZSL200-50-55-2 | 200 | 50 | 66.1 | 55 | 2900 | 2.5 | 7.0 | 100 | 720 |
34 | 150ZSL200-65-75-2 | 200 | 65 | 63.0 | 75 | 2900 | 2.5 | 7.0 | 100 | 880 |
35 | 150ZSL200-80-90-2 | 200 | 80 | 64.6 | 90 | 2900 | 2.5 | 7.0 | 100 | 950 |
36 | 150ZSL250-50-55-4 | 250 | 50 | 69.7 | 55 | 1450 | 2.5 | 7.0 | 100 | 860 |
37 | 200ZSL250-12-15-6 | 250 | 12 | 68.1 | 15 | 960 | 3.0 | 5.5 | 120 | 480 |
38 | 200ZSL250-15-18-6 | 250 | 15 | 69.0 | 18 | 960 | 3.0 | 6.0 | 120 | 520 |
39 | 200ZSL250-20-22-4 | 250 | 20 | 72.9 | 22 | 1450 | 3.0 | 6.0 0 | 120 | 620 |
40 | 200ZSL250-25-30-4 | 250 | 25 | 66.8 | 30 | 1450 | 3.0 | 6.0 | 120 | 710 |
41 | 200ZSL250-30-37-4 | 250 | 30 | 69.3 | 32 | 1450 | 3.0 | 6.5 | 120 | 820 |
42 | 200ZSL250-40-45-4 | 250 | 40 | 71.2 | 45 | 1450 | 3.0 | 6.5 | 120 | 850 |
43 | 200ZSL250-45-55-4 | 250 | 45 | 69.7 | 55 | 1450 | 3.0 | 7.0 | 120 | 920 |
44 | 200ZSL250-55-75-4 | 250 | 55 | 62.4 | 75 | 1450 | 3.0 | 7.0 | 120 | 980 |
45 | 200ZSL250-65-90-4 | 250 | 65 | 65.6 | 90 | 1450 | 3.0 | 7.0 | 120 | 1030 |
46 | 200ZSL300-10-15-6 | 300 | 10 | 72.7 | 15 | 960 | 3.0 | 5.5 | 120 | 480 |
47 | 200ZSL300-12-18.5-6 | 300 | 12 | 70.7 | 18.5 | 960 | 3.0 | 6.0 | 120 | 520 |
48 | 200ZSL300-15-22-4 | 300 | 15 | 74.3 | 22 | 1450 | 3.0 | 6.0 | 120 | 620 |
49 | 200ZSL300-20-30-4 | 300 | 20 | 72.7 | 30 | 1450 | 3.0 | 6.5 | 120 | 710 |
50 | 200ZSL300-25-37-4 | 300 | 25 | 73.6 | 37 | 1450 | 3.0 | 6.5 | 120 | 820 |
51 | 200ZSL300-30-45-4 | 300 | 30 | 72.7 | 45 | 1450 | 3.0 | 6.5 | 120 | 850 |
52 | 200ZSL300-40-55-4 | 300 | 40 | 74.3 | 55 | 1450 | 3.0 | 7.0 | 120 | 920 |
53 | 200ZSL300-50-75-4 | 300 | 50 | 68.1 | 75 | 1450 | 3.0 | 7.0 | 120 | 980 |
54 | 200ZSL300-55-75-4 | 300 | 55 | 74.9 | 75 | 1450 | 3.0 | 7.0 | 120 | 980 |
55 | 200ZSL300-60-90-4 | 300 | 60 | 68.1 | 90 | 1450 | 3.0 | 7.0 | 120 | 1030 |
56 | 200ZSL350-8-15-6 | 350 | 8 | 63.6 | 15 | 960 | 3.0 | 5.0 | 120 | 580 |
57 | 200ZSL350-11-18.5-6 | 350 | 11 | 70.9 | 18.5 | 960 | 3.0 | 5.5 | 120 | 620 |
58 | 200ZSL350-13-22-4 | 350 | 13 | 70.4 | 22 | 1450 | 3.0 | 5.5 | 120 | 620 |
59 | 200ZSL350-17-30-4 | 350 | 17 | 67.6 | 30 | 1450 | 3.0 | 6.0 | 120 | 710 |
60 | 200ZSL350-22-37-4 | 350 | 22 | 66.7 | 37 | 1450 | 3.0 | 6.5 | 120 | 820 |
61 | 200ZSL350-28-45-4 | 350 | 28 | 69.8 | 45 | 1450 | 3.0 | 6.5 | 120 | 850 |
62 | 200ZSL350-35-55-4 | 350 | 35 | 71.4 | 55 | 1450 | 3.0 | 7.0 | 120 | 920 |
63 | 200ZSL350-42-75-4 | 350 | 42 | 66.8 | 75 | 1450 | 3.0 | 7.0 | 120 | 980 |
64 | 200ZSL350-50-90-4 | 350 | 50 | 66.2 | 90 | 1450 | 3.0 | 7.0 | 120 | 1030 |
65 | 200ZSL350-60-110-4 | 350 | 60 | 65.0 | 110 | 1450 | 3.0 | 7.0 | 120 | 1120 |
66 | 200ZSL400-9-18.5-6 | 400 | 9 | 66.3 | 18.5 | 960 | 3.0 | 5.0 | 120 | 620 |
67 | 200ZSL400-11-22-6 | 400 | 11 | 68.1 | 22 | 960 | 3.0 | 5.5 | 120 | 710 |
68 | 200ZSL400-15-30-4 | 400 | 15 | 68.1 | 30 | 1450 | 3.0 | 6.0 | 120 | 710 |
69 | 200ZSL400-20-37-4 | 400 | 20 | 69.3 | 37 | 1450 | 3.0 | 6.5 | 120 | 820 |
70 | 200ZSL400-25-45-4 | 400 | 25 | 71.2 | 45 | 1450 | 3.0 | 6.5 | 120 | 850 |
71 | 200ZSL400-30-55-4 | 400 | 30 | 69.9 | 55 | 1450 | 3.0 | 7.0 | 120 | 920 |
72 | 200ZSL400-40-75-4 | 400 | 40 | 68.4 | 75 | 1450 | 3.0 | 7.0 | 120 | 980 |
73 | 200ZSL400-48-90-4 | 400 | 48 | 68.4 | 90 | 1450 | 3.0 | 7.0 | 120 | 1030 |
74 | 200ZSL400-55-110-4 | 400 | 55 | 64.1 | 110 | 1450 | 3.0 | 7.0 | 120 | 1120 |
75 | 200ZSL400-65-132-4 | 400 | 65 | 63.1 | 132 | 1450 | 3.0 | 7.0 | 120 | 1160 |
76 | 250ZSL500-12-30-6 | 500 | 12 | 64.1 | 30 | 960 | 4.0 | 5.5 | 150 | 1070 |
77 | 250ZSL500-15-37-4 | 500 | 15 | 65.0 | 37 | 1450 | 4.0 | 6.0 | 150 | 1070 |
78 | 250ZSL500-20-45-4 | 500 | 20 | 71.2 | 45 | 1450 | 4.0 | 6.0 | 150 | 1110 |
79 | 250ZSL500-25-55-4 | 500 | 25 | 72.9 | 55 | 1450 | 4.0 | 6.5 | 150 | 1220 |
80 | 250ZSL500-30-75-4 | 500 | 30 | 64.1 | 75 | 1450 | 4.0 | 6.5 | 150 | 1310 |
81 | 250ZSL500-35-90-4 | 500 | 35 | 62.3 | 90 | 1450 | 4.0 | 6.5 | 150 | 1360 |
82 | 250ZSL500-40-90-4 | 500 | 40 | 71.2 | 90 | 1450 | 4.0 | 6.5 | 150 | 1360 |
83 | 250ZSL600-10-30-6 | 600 | 10 | 64.1 | 30 | 960 | 4.0 | 5.5 | 150 | 1070 |
84 | 250ZSL600-13-37.0-4 | 600 | 13 | 67.6 | 37 | 1450 | 4.0 | 6.0 | 150 | 1070 |
85 | 250ZSL600-16-45.0-4 | 600 | 16 | 68.4 | 45 | 1450 | 4.0 | 6.0 | 150 | 1110 |
86 | 250ZSL600-22-55.0-4 | 600 | 22 | 76.9 | 55 | 1450 | 4.0 | 6.5 | 150 | 1220 |
87 | 250ZSL600-27-75.0-4 | 600 | 27 | 69.2 | 75 | 1450 | 4.0 | 6.5 | 150 | 1310 |
88 | 250ZSL600-32-90.0-4 | 600 | 32 | 68.4 | 90 | 1450 | 4.0 | 6.5 | 150 | 1360 |
89 | 250ZSL600-40-110-4 | 600 | 40 | 69.9 | 110 | 1450 | 4.0 | 6.5 | 150 | 1450 |
90 | 250ZSL600-48-132-4 | 600 | 48 | 69.9 | 132 | 1450 | 4.0 | 6.5 | 150 | 1490 |
91 | 250ZSL600-55-160-4 | 600 | 55 | 66.1 | 160 | 1450 | 4.0 | 6.5 | 150 | 1550 |
92 | 300ZSL800-10-37-6 | 800 | 10 | 69.3 | 37 | 960 | 5.0 | 5.5 | 150 | 1260 |
93 | 300ZSL800-13-45-6 | 800 | 13 | 74.1 | 45 | 960 | 5.0 | 5.5 | 150 | 1350 |
94 | 300ZSL800-16-55-6 | 800 | 16 | 74.6 | 55 | 960 | 5.0 | 5.5 | 150 | 1390 |
95 | 300ZSL800-20-75-4 | 800 | 20 | 68.4 | 75 | 1450 | 5.0 | 6.0 | 150 | 1350 |
96 | 300ZSL800-26-90-4 | 800 | 26 | 74.1 | 90 | 1450 | 5.0 | 6.5 | 150 | 1390 |
97 | 300ZSL800-32-110-4 | 800 | 32 | 74.6 | 110 | 1450 | 5.0 | 6.5 | 150 | 1480 |
98 | 300ZSL800-37-132-4 | 800 | 37 | 71.9 | 132 | 1450 | 5.0 | 6.5 | 150 | 1520 |
99 | 300ZSL800-42-160-4 | 800 | 42 | 67.3 | 160 | 1450 | 5.0 | 6.5 | 150 | 1580 |
100 | 300ZSL1000-8-37-6 | 1000 | 8 | 69.3 | 37 | 960 | 5.0 | 5.5 | 150 | 1260 |
101 | 300ZSL1000-10-45-6 | 1000 | 10 | 71.2 | 45 | 960 | 5.0 | 5.5 | 150 | 1350 |
102 | 300ZSL1000-12-55-6 | 1000 | 12 | 69.9 | 55 | 960 | 5.0 | 6.0 | 150 | 1390 |
103 | 300ZSL1000-16-75-4 | 1000 | 16 | 68.4 | 75 | 1450 | 5.0 | 6.0 | 150 | 1350 |
104 | 300ZSL1000-20-90-4 | 1000 | 20 | 71.2 | 90 | 1450 | 5.0 | 6.5 | 150 | 1390 |
105 | 300ZSL1000-25-110-4 | 1000 | 25 | 72.9 | 110 | 1450 | 5.0 | 6.5 | 150 | 1480 |
106 | 300ZSL1000-30-132-4 | 1000 | 30 | 72.9 | 132 | 1450 | 5.0 | 6.5 | 150 | 1520 |
107 | 300ZSL1000-35-160-4 | 1000 | 35 | 70.1 | 160 | 1450 | 5.0 | 6.5 | 150 | 1580 |
108 | 350ZSL1200-7-37-6 | 1200 | 7 | 72.8 | 37 | 960 | 5.0 | 5.5 | 150 | 1280 |
109 | 350ZSL1200-9-45-6 | 1200 | 9 | 76.9 | 45 | 960 | 5.0 | 5.5 | 150 | 1370 |
110 | 350ZSL1200-11-55-6 | 1200 | 11 | 66.7 | 55 | 960 | 5.0 | 5.5 | 150 | 1420 |
111 | 350ZSL1200-13-75-4 | 1200 | 13 | 72.7 | 75 | 1450 | 5.0 | 6.0 | 150 | 1370 |
112 | 350ZSL1200-17-90-4 | 1200 | 17 | 76.9 | 90 | 1450 | 5.0 | 6.0 | 150 | 1420 |
113 | 350ZSL1200-22-110-4 | 1200 | 22 | 75.8 | 110 | 1450 | 5.0 | 6.5 | 150 | 1510 |
114 | 350ZSL1200-26-132-4 | 1200 | 26 | 72.1 | 132 | 1450 | 5.0 | 6.5 | 150 | 1540 |
115 | 350ZSL1200-30-160-4 | 1200 | 30 | 67.3 | 160 | 1450 | 5.0 | 6.5 | 150 | 1620 |
116 | 350ZSL1200-35-200-4 | 1200 | 35 | 71.5 | 200 | 1450 | 5.0 | 6.5 | 150 | 1710 |
117 | 350ZSL1500-5.5-37-6 | 1500 | 5.5 | 74.8 | 37 | 960 | 5.0 | 6.5 | 150 | 1280 |
118 | 350ZSL1500-7-45-6 | 1500 | 7 | 78.7 | 45 | 960 | 5.0 | 5.5 | 150 | 1370 |
119 | 350ZSL1500-9-55-6 | 1500 | 9 | 70.5 | 55 | 960 | 5.0 | 5.5 | 150 | 1420 |
120 | 350ZSL1500-11-75-4 | 1500 | 11 | 74.8 | 75 | 1450 | 5.0 | 6.0 | 150 | 1370 |
121 | 350ZSL1500-14-90-4 | 1500 | 14 | 74.3 | 90 | 1450 | 5.0 | 6.0 | 150 | 1420 |
122 | 350ZSL1500-17-110-4 | 1500 | 17 | 74.3 | 110 | 1450 | 5.0 | 6.5 | 150 | 1510 |
123 | 350ZSL1500-20-132-4 | 1500 | 20 | 72.9 | 132 | 1450 | 5.0 | 6.5 | 150 | 1540 |
124 | 350ZSL1500-25-160-4 | 1500 | 25 | 75.1 | 160 | 1450 | 5.0 | 6.5 | 150 | 1620 |
125 | 350ZSL1500-30-200-4 | 1500 | 30 | 72.1 | 200 | 1450 | 5.0 | 6.5 | 150 | 1710 |
126 | 350ZSL1500-35-220-4 | 1500 | 35 | 76.5 | 220 | 1450 | 5.0 | 6.5 | 150 | 1820 |
127 | 400ZSL1800-10-90-6 | 1800 | 10 | 64.1 | 90 | 960 | 5.0 | 5.5 | 150 | 1650 |
128 | 400ZSL1800-12-110-6 | 1800 | 12 | 63.0 | 110 | 960 | 5.0 | 6.0 | 150 | 1750 |
129 | 400ZSL1800-15-132-6 | 1800 | 15 | 65.6 | 132 | 960 | 5.0 | 6.5 | 150 | 1860 |
130 | 400ZSL1800-18-160-4 | 1800 | 18 | 64.9 | 160 | 960 | 5.0 | 6.5 | 150 | 1920 |
131 | 400ZSL1800-24-200-6 | 1800 | 24 | 69.2 | 200 | 960 | 5.0 | 6.5 | 150 | 2100 |
132 | 400ZSL1800-26-220-6 | 1800 | 26 | 68.2 | 220 | 960 | 5.0 | 6.5 | 150 | 2200 |
133 | 400ZSL1800-30-250-6 | 1800 | 30 | 69.2 | 250 | 960 | 5.0 | 6.5 | 150 | 2500 |
134 | 400ZSL1800-32-280-4 | 1800 | 32 | 68.2 | 280 | 1450 | 5.0 | 6.5 | 150 | 2400 |
135 | 400ZSL1800-35-315-4 | 1800 | 35 | 64.1 | 315 | 1450 | 5.0 | 6.5 | 150 | 2550 |
136 | 400ZSL2000-9-90-6 | 2000 | 9 | 64.1 | 90 | 960 | 5.0 | 5.5 | 150 | 1650 |
137 | 400ZSL2000-11-110-6 | 2000 | 11 | 64.1 | 110 | 960 | 5.0 | 6.0 | 150 | 1750 |
138 | 400ZSL2000-14-132-6 | 2000 | 14 | 68 | 132 | 960 | 5.0 | 6.0 | 150 | 1860 |
139 | 400ZSL2000-17-160-6 | 2000 | 17 | 68.1 | 160 | 960 | 5.0 | 6.5 | 150 | 1920 |
140 | 400ZSL2000-22-200-6 | 2000 | 22 | 70.5 | 200 | 960 | 5.0 | 6.5 | 150 | 2100 |
141 | 400ZSL2000-24-220-6 | 2000 | 24 | 69.9 | 220 | 960 | 5.0 | 6.5 | 150 | 2200 |
142 | 400ZSL2000-28-250-6 | 2000 | 28 | 71.8 | 250 | 960 | 5.0 | 6.5 | 150 | 2500 |
143 | 400ZSL2000-30-280-4 | 2000 | 30 | 71.2 | 280 | 1450 | 5.0 | 6.5 | 150 | 2400 |
144 | 400ZSL2000-32-315-4 | 2000 | 32 | 65.1 | 315 | 1450 | 5.0 | 6.5 | 150 | 2550 |
145 | 500ZSL2200-8-90-6 | 2200 | 8 | 62.7 | 90 | 960 | 5.0 | 5.5 | 150 | 1680 |
146 | 500ZSL2200-10-110-6 | 2200 | 10 | 64.1 | 110 | 960 | 5.0 | 5.5 | 150 | 1780 |
147 | 500ZSL2200-12-132-6 | 2200 | 12 | 64.1 | 132 | 960 | 5.0 | 6.0 | 150 | 1880 |
148 | 500ZSL2200-15-160-6 | 2200 | 15 | 66.1 | 160 | 960 | 5.0 | 6.5 | 150 | 1950 |
149 | 500ZSL2200-20-200-6 | 2200 | 20 | 70.5 | 200 | 960 | 5.0 | 6.5 | 150 | 2130 |
150 | 500ZSL2200-22-220-6 | 2200 | 22 | 70.5 | 220 | 960 | 5.0 | 6.5 | 150 | 2230 |
151 | 500ZSL2200-25-250-6 | 2200 | 25 | 70.5 | 250 | 960 | 5.0 | 6.5 | 150 | 2530 |
152 | 500ZSL2200-28-280-4 | 2200 | 28 | 70.2 | 280 | 1450 | 5.0 | 6.5 | 150 | 2450 |
153 | 500ZSL2200-30-315-4 | 2200 | 30 | 69.6 | 315 | 1450 | 5.0 | 6.5 | 150 | 2600 |

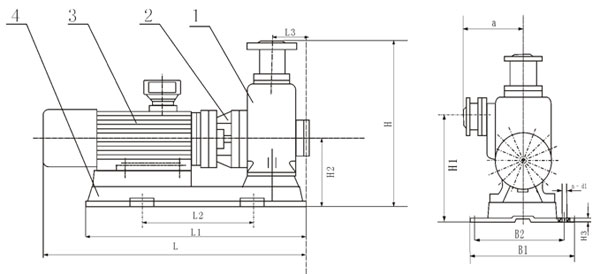

序号 | 型号 | 安装尺寸 | 减振器规格 | ||||||||||||||
ZSL便拆式 | ZSLL直联式 | L3 | H | H1 | H2 | H3 | a | B1 | B2 | n-d1 | |||||||
L | L1 | L2 | L | L1 | L2 | ||||||||||||
1 | 100ZSL80-10-4-4 | 900 | 820 | 600 | 750 | 670 | 500 | 130 | 900 | 610 | 320 | 20 | 220 | 350 | 300 | 4-φ18 | JGD3 |
2 | 100ZSL100-12-5.5-4 | 950 | 850 | 650 | 800 | 700 | 500 | 130 | 900 | 610 | 320 | 20 | 220 | 350 | 300 | 4-φ18 | JGD3 |
3 | 100ZSL100-15-7.5-4 | 980 | 850 | 650 | 830 | 700 | 500 | 130 | 900 | 610 | 320 | 20 | 220 | 350 | 300 | 4-φ18 | JGD3 |
4 | 100ZSL100-20-11-4 | 1050 | 900 | 700 | 900 | 750 | 550 | 130 | 900 | 610 | 320 | 20 | 220 | 350 | 300 | 4-φ18 | JGD3 |
5 | 100ZSL100-25-15-4 | 1100 | 920 | 700 | 950 | 770 | 550 | 130 | 1000 | 710 | 380 | 20 | 270 | 400 | 350 | 4-φ18 | JGD3 |
6 | 100ZSL100-30-18.5 | 1120 | 920 | 700 | 970 | 770 | 550 | 130 | 1000 | 710 | 380 | 20 | 270 | 400 | 350 | 4-φ18 | JGD3 |
7 | 100ZSL100-40-22-2 | 1120 | 920 | 700 | 970 | 770 | 550 | 130 | 900 | 610 | 320 | 20 | 220 | 400 | 350 | 4-φ18 | JGD3 |
8 | 100ZSL100-50-30-2 | 1180 | 1000 | 800 | 980 | 800 | 600 | 130 | 900 | 610 | 320 | 20 | 220 | 400 | 350 | 4-φ18 | JGD3 |
9 | 100ZSL100-60-37-2 | 1180 | 1000 | 800 | 980 | 800 | 600 | 130 | 900 | 610 | 320 | 20 | 220 | 400 | 350 | 4-φ18 | JGD3 |
10 | 100ZSL100-70-45-2 | 1230 | 1050 | 850 | 1030 | 850 | 650 | 130 | 1020 | 710 | 400 | 20 | 270 | 450 | 400 | 4-φ18 | JGD3 |
11 | 100ZSL100-80-45-2 | 1230 | 1050 | 850 | 1030 | 850 | 650 | 130 | 1020 | 710 | 400 | 20 | 270 | 450 | 400 | 4-φ18 | JGD3 |
12 | 150ZSL150-10-7.5-4 | 950 | 850 | 650 | 850 | 700 | 500 | 130 | 1000 | 690 | 380 | 20 | 270 | 400 | 350 | 4-φ18 | JGD4 |
13 | 150ZSL150-15-11-4 | 1050 | 900 | 700 | 900 | 750 | 550 | 130 | 1000 | 690 | 380 | 20 | 270 | 400 | 350 | 4-φ18 | JGD4 |
14 | 150ZSL150-20-15-4 | 1100 | 920 | 700 | 950 | 770 | 550 | 130 | 1000 | 690 | 380 | 20 | 270 | 400 | 350 | 4-φ18 | JGD4 |
15 | 150ZSL150-25-18.5 | 1120 | 950 | 750 | 970 | 800 | 600 | 130 | 1000 | 690 | 380 | 20 | 270 | 400 | 350 | 4-φ18 | JGD4 |
16 | 150ZSL150-30-22-4 | 1150 | 950 | 750 | 1000 | 800 | 600 | 130 | 1000 | 690 | 380 | 20 | 270 | 400 | 350 | 4-φ18 | JGD4 |
17 | 150ZSL150-35-30-4 | 1180 | 1050 | 850 | 980 | 850 | 650 | 155 | 1100 | 805 | 460 | 20 | 270 | 500 | 450 | 4-φ18 | JGD4 |
18 | 150ZSL150-40-37-4 | 1200 | 1050 | 850 | 1000 | 850 | 650 | 155 | 1100 | 805 | 460 | 20 | 270 | 500 | 450 | 4-φ18 | JGD4 |
19 | 150ZSL150-50-45-4 | 1230 | 1050 | 850 | 1030 | 850 | 650 | 155 | 1100 | 805 | 460 | 20 | 270 | 500 | 450 | 4-φ18 | JGD4 |
20 | 150ZSL150-40-37-2 | 1180 | 1000 | 800 | 980 | 800 | 600 | 130 | 1000 | 710 | 400 | 20 | 270 | 450 | 400 | 4-φ18 | JGD4 |
21 | 150ZSL150-50-45-2 | 1230 | 1050 | 850 | 1030 | 850 | 600 | 130 | 1000 | 710 | 400 | 20 | 270 | 450 | 400 | 4-φ18 | JGD4 |
22 | 150ZSL150-65-55-2 | 1300 | 1150 | 950 | 1100 | 950 | 750 | 130 | 1000 | 710 | 400 | 20 | 270 | 450 | 400 | 4-φ18 | JGD4 |
23 | 150ZSL150-80-75-2 | 1380 | 1250 | 1000 | 1180 | 1050 | 800 | 130 | 1000 | 710 | 400 | 20 | 270 | 450 | 400 | 4-φ18 | JGD4 |
24 | 150ZSL200-11-11-4 | 1020 | 820 | 620 | 820 | 620 | 420 | 130 | 1000 | 690 | 380 | 20 | 270 | 400 | 350 | 4-φ18 | JGD4 |
25 | 150ZSL200-15-15-4 | 1050 | 850 | 650 | 850 | 650 | 450 | 130 | 1000 | 690 | 380 | 20 | 270 | 400 | 350 | 4-φ18 | JGD4 |
26 | 150ZSL200-18-18.5 | 1100 | 920 | 720 | 900 | 720 | 520 | 130 | 1000 | 690 | 380 | 20 | 270 | 400 | 350 | 4-φ18 | JGD4 |
27 | 150ZSL200-22-22-4 | 1150 | 950 | 750 | 950 | 750 | 550 | 130 | 1000 | 690 | 380 | 20 | 270 | 400 | 350 | 4-φ18 | JGD4 |
28 | 150ZSL200-27-30-4 | 1180 | 1000 | 800 | 980 | 800 | 600 | 130 | 1000 | 805 | 460 | 20 | 270 | 400 | 350 | 4-φ18 | JGD4 |
29 | 150ZSL200-32-37-4 | 1200 | 1120 | 920 | 1000 | 920 | 720 | 155 | 1100 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
30 | 150ZSL200-40-45-4 | 1230 | 1150 | 950 | 1030 | 950 | 750 | 155 | 1100 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
31 | 150ZSL200-50-55-4 | 1300 | 1200 | 1000 | 1100 | 1000 | 800 | 155 | 1100 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
32 | 150ZSL200-40-45-2 | 1230 | 1050 | 850 | 1030 | 850 | 650 | 130 | 1000 | 710 | 400 | 20 | 270 | 450 | 400 | 4-φ18 | JGD4 |
33 | 150ZSL200-50-55-2 | 1300 | 1150 | 950 | 1100 | 950 | 750 | 130 | 1000 | 710 | 400 | 20 | 270 | 450 | 400 | 4-φ18 | JGD4 |
34 | 150ZSL200-65-75-2 | 1380 | 1250 | 1050 | 1180 | 1050 | 850 | 130 | 1000 | 710 | 400 | 20 | 270 | 450 | 400 | 4-φ18 | JGD4 |
35 | 150ZSL200-80-90-2 | 1450 | 1320 | 1120 | 1250 | 1120 | 920 | 130 | 1000 | 710 | 400 | 20 | 270 | 450 | 400 | 4-φ18 | JGD4 |
36 | 150ZSL250-50-55-4 | 1400 | 1200 | 1000 | 1200 | 1000 | 800 | 155 | 1160 | 805 | 460 | 20 | 450 | 550 | 500 | 4-φ18 | JGD4 |
37 | 200ZSL250-12-15-6 | 1230 | 1000 | 800 | 1030 | 800 | 600 | 155 | 1140 | 785 | 440 | 20 | 450 | 450 | 400 | 4-φ18 | JGD4 |
38 | 200ZSL250-15-18-6 | 1280 | 1050 | 850 | 1080 | 850 | 650 | 155 | 1140 | 785 | 440 | 20 | 450 | 450 | 400 | 4-φ18 | JGD4 |
39 | 200ZSL250-20-22-4 | 1280 | 1050 | 850 | 1080 | 850 | 650 | 155 | 1140 | 785 | 440 | 20 | 450 | 450 | 400 | 4-φ18 | JGD4 |
40 | 200ZSL250-25-30-4 | 1320 | 1080 | 900 | 1120 | 880 | 700 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
41 | 200ZSL250-30-37-4 | 1340 | 1120 | 900 | 1140 | 920 | 700 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD3 |
42 | 200ZSL250-40-45-4 | 1370 | 1150 | 950 | 1170 | 950 | 750 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD3 |
43 | 200ZSL250-45-55-4 | 1400 | 1200 | 1000 | 1200 | 1000 | 800 | 155 | 1160 | 805 | 460 | 20 | 450 | 550 | 500 | 4-φ18 | JGD4 |
44 | 200ZSL250-55-75-4 | 1460 | 1250 | 1050 | 1260 | 1050 | 850 | 155 | 1220 | 850 | 510 | 20 | 450 | 600 | 550 | 4-φ18 | JGD4 |
45 | 200ZSL250-65-90-4 | 1520 | 1300 | 1100 | 1320 | 1100 | 900 | 155 | 1220 | 850 | 510 | 20 | 450 | 600 | 550 | 4-φ18 | JGD4 |
46 | 200ZSL300-10-15-6 | 1230 | 1000 | 800 | 1030 | 800 | 600 | 155 | 1140 | 785 | 440 | 20 | 450 | 450 | 400 | 4-φ18 | JGD4 |
47 | 200ZSL300-12-18.5-4 | 1280 | 1050 | 850 | 1080 | 850 | 650 | 155 | 1140 | 785 | 440 | 20 | 450 | 450 | 400 | 4-φ18 | JGD4 |
48 | 200ZSL300-15-22-4 | 1280 | 1050 | 850 | 1080 | 850 | 650 | 155 | 1140 | 785 | 440 | 20 | 450 | 450 | 400 | 4-φ18 | JGD4 |
49 | 200ZSL300-20-30-4 | 1320 | 1080 | 900 | 1120 | 880 | 680 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
50 | 200ZSL300-25-37-4 | 1340 | 1120 | 900 | 1140 | 920 | 700 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
51 | 200ZSL300-30-45-4 | 1370 | 1150 | 950 | 1170 | 950 | 750 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
52 | 200ZSL300-40-55-4 | 1400 | 1200 | 1000 | 1200 | 1000 | 800 | 155 | 1160 | 805 | 460 | 20 | 450 | 550 | 500 | 4-φ18 | JGD4 |
53 | 200ZSL300-50-75-4 | 1460 | 1250 | 1050 | 1260 | 1050 | 850 | 155 | 1220 | 850 | 510 | 20 | 450 | 600 | 550 | 4-φ18 | JGD4 |
54 | 200ZSL300-55-75-4 | 1460 | 1250 | 1050 | 1260 | 1050 | 850 | 155 | 1220 | 850 | 510 | 20 | 450 | 600 | 550 | 4-φ18 | JGD4 |
55 | 200ZSL300-60-90-4 | 1520 | 1300 | 1100 | 1320 | 1100 | 900 | 155 | 1220 | 850 | 510 | 20 | 450 | 600 | 550 | 4-φ18 | JGD4 |
56 | 200ZSL350-8-15-6 | 1230 | 1000 | 800 | 1030 | 800 | 600 | 155 | 1140 | 785 | 440 | 20 | 450 | 450 | 400 | 4-φ18 | JGD4 |
57 | 200ZSL350-11-18.5-6 | 1280 | 1050 | 850 | 1080 | 850 | 650 | 155 | 1140 | 785 | 460 | 20 | 450 | 450 | 400 | 4-φ18 | JGD4 |
58 | 200ZSL350-13-22-6 | 1320 | 1080 | 900 | 1120 | 880 | 680 | 155 | 1140 | 785 | 460 | 20 | 450 | 450 | 400 | 4-φ18 | JGD4 |
59 | 200ZSL350-17-30-4 | 1320 | 1080 | 900 | 1120 | 880 | 680 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
60 | 200ZSL350-22-37-4 | 1340 | 1120 | 900 | 1140 | 920 | 700 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
61 | 200ZSL350-28-45-4 | 1370 | 1150 | 950 | 1170 | 950 | 750 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
62 | 200ZSL350-35-55-4 | 1400 | 1200 | 1000 | 1200 | 1000 | 800 | 155 | 1160 | 805 | 460 | 20 | 450 | 550 | 500 | 4-φ18 | JGD4 |
63 | 200ZSL350-42-75-4 | 1460 | 1250 | 1050 | 1260 | 1050 | 850 | 155 | 1160 | 805 | 460 | 20 | 450 | 550 | 500 | 4-φ18 | JGD4 |
64 | 200ZSL350-50-90-4 | 1520 | 1300 | 1100 | 1320 | 1100 | 900 | 155 | 1220 | 850 | 510 | 20 | 450 | 600 | 550 | 4-φ18 | JGD4 |
65 | 200ZSL350-60-110-4 | 1670 | 1400 | 1200 | 1470 | 1200 | 1000 | 155 | 1220 | 850 | 510 | 20 | 450 | 600 | 550 | 4-φ18 | JGD4 |
66 | 200ZSL400-9-18.5-6 | 1280 | 1050 | 850 | 1080 | 850 | 650 | 155 | 1140 | 785 | 440 | 20 | 450 | 450 | 400 | 4-φ18 | JGD4 |
67 | 200ZSL400-11-22-6 | 1320 | 1080 | 900 | 1120 | 880 | 680 | 155 | 1140 | 785 | 440 | 20 | 450 | 450 | 400 | 4-φ18 | JGD4 |
68 | 200ZSL400-15-30-4 | 1320 | 1080 | 900 | 1120 | 880 | 680 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
69 | 200ZSL400-20-37-4 | 1340 | 1120 | 900 | 1140 | 920 | 700 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
70 | 200ZSL400-25-45-4 | 1370 | 1150 | 950 | 1170 | 950 | 750 | 155 | 1160 | 805 | 460 | 20 | 450 | 500 | 450 | 4-φ18 | JGD4 |
71 | 200ZSL400-30-55-4 | 1400 | 1200 | 1000 | 1200 | 1000 | 800 | 155 | 1160 | 805 | 460 | 20 | 450 | 550 | 500 | 4-φ18 | JGD4 |
72 | 200ZSL400-40-75-4 | 1460 | 1250 | 1050 | 1260 | 1050 | 850 | 155 | 1160 | 805 | 460 | 20 | 450 | 550 | 500 | 4-φ18 | JGD4 |
73 | 200ZSL400-48-90-4 | 1520 | 1300 | 1100 | 1320 | 1100 | 900 | 155 | 1220 | 850 | 510 | 20 | 450 | 600 | 550 | 4-φ18 | JGD4 |
74 | 200ZSL400-55-110-4 | 1670 | 1400 | 1200 | 1470 | 1200 | 1000 | 155 | 1220 | 850 | 510 | 20 | 450 | 600 | 550 | 4-φ18 | JGD4 |
75 | 200ZSL400-65-132-4 | 1670 | 1400 | 1200 | 1470 | 1200 | 1000 | 155 | 1220 | 850 | 510 | 20 | 450 | 600 | 550 | 4-φ18 | JGD4 |
76 | 250ZSL500-12-30-6 | 1520 | 1270 | 800 | 1320 | 1070 | 600 | 230 | 1350 | 950 | 500 | 20 | 600 | 600 | 550 | 4-φ18 | JGD4 |
77 | 250ZSL500-15-37-4 | 1520 | 1270 | 800 | 1320 | 1070 | 600 | 230 | 1350 | 950 | 500 | 20 | 600 | 600 | 550 | 4-φ18 | JGD4 |
78 | 250ZSL500-20-45-4 | 1550 | 1300 | 850 | 1350 | 1100 | 650 | 230 | 1350 | 950 | 500 | 20 | 600 | 600 | 550 | 4-φ18 | JGD4 |
79 | 250ZSL500-25-55-4 | 1600 | 1350 | 850 | 1350 | 1150 | 700 | 230 | 1350 | 950 | 500 | 20 | 600 | 600 | 550 | 4-φ18 | JGD4 |
80 | 250ZSL500-30-75-4 | 1680 | 1400 | 950 | 1480 | 1200 | 750 | 230 | 1350 | 950 | 500 | 20 | 600 | 600 | 550 | 4-φ18 | JGD4 |
81 | 250ZSL500-35-90-4 | 1730 | 1430 | 950 | 1530 | 1230 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
82 | 250ZSL500-40-90-4 | 1730 | 1430 | 950 | 1530 | 1230 | 750 | 230 | 1420 | 1020 | 560 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
83 | 250ZSL600-10-30-6 | 1520 | 1270 | 800 | 1320 | 1070 | 600 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
84 | 250ZSL600-13-37.0-4 | 1520 | 1270 | 800 | 1320 | 1070 | 600 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
85 | 250ZSL600-16-45.0-4 | 1550 | 1300 | 850 | 1350 | 1100 | 650 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
86 | 250ZSL600-22-55.0-4 | 1600 | 1350 | 900 | 1400 | 1150 | 700 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
87 | 250ZSL600-27-75.0-4 | 1680 | 1400 | 950 | 1480 | 1200 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
88 | 250ZSL600-32-90.0-4 | 17300 | 1430 | 950 | 1530 | 1250 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
89 | 250ZSL600-40-110-4 | 1880 | 1500 | 1050 | 1680 | 1300 | 850 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
90 | 250ZSL600-48-132-4 | 1880 | 1500 | 1050 | 1680 | 1300 | 850 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
91 | 250ZSL600-55-160-4 | 19500 | 1550 | 1100 | 1750 | 1350 | 900 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
92 | 300ZSL800-10-37-6 | 1600 | 1350 | 900 | 1400 | 1150 | 700 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
93 | 300ZSL800-13-45-6 | 1680 | 1400 | 950 | 1480 | 1200 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
94 | 300ZSL800-16-55-6 | 1730 | 1430 | 950 | 1530 | 1230 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
95 | 300ZSL800-20-75-4 | 1680 | 1400 | 950 | 1480 | 1200 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
96 | 300ZSL800-26-90-4 | 1730 | 1430 | 950 | 1530 | 1230 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
97 | 300ZSL800-32-110-4 | 1880 | 1500 | 1050 | 1680 | 1300 | 850 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
98 | 300ZSL800-37-132-4 | 1880 | 1500 | 1050 | 1680 | 1300 | 850 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
99 | 300ZSL800-42-160-4 | 19500 | 1550 | 1100 | 1750 | 1350 | 900 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
100 | 300ZSL1000-8-37-6 | 1600 | 1350 | 900 | 1400 | 1150 | 700 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
101 | 300ZSL1000-10-45-6 | 1680 | 1400 | 950 | 1480 | 1200 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
102 | 300ZSL1000-12-55-6 | 17300 | 1430 | 950 | 1530 | 1250 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
103 | 300ZSL1000-16-75-4 | 1680 | 1400 | 950 | 1480 | 1200 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
104 | 300ZSL1000-20-90-4 | 17300 | 1430 | 950 | 1530 | 1250 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
105 | 300ZSL1000-25-110-4 | 1880 | 1500 | 1050 | 1680 | 1300 | 850 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
106 | 300ZSL1000-30-132-4 | 1880 | 1500 | 1050 | 1680 | 1300 | 850 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
107 | 300ZSL1000-35-160-4 | 19500 | 1550 | 1100 | 1750 | 1350 | 900 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
108 | 350ZSL1200-7-37-6 | 1600 | 1350 | 900 | 1400 | 1150 | 700 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
109 | 350ZSL1200-9-45-6 | 1680 | 1400 | 950 | 1480 | 1200 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
110 | 350ZSL1200-11-55-6 | 17300 | 1430 | 950 | 1530 | 1250 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
111 | 350ZSL1200-13-75-4 | 1680 | 1400 | 950 | 1480 | 1200 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
112 | 350ZSL1200-17-90-4 | 17300 | 1430 | 950 | 1530 | 1250 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
113 | 350ZSL1200-22-110-4 | 1880 | 1500 | 1050 | 1680 | 1300 | 850 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
114 | 350ZSL1200-26-132-4 | 1880 | 1500 | 1050 | 1680 | 1300 | 850 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
115 | 350ZSL1200-30-160-4 | 19500 | 1550 | 1100 | 1750 | 1350 | 900 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
116 | 350ZSL1200-35-200-4 | 2020 | 1600 | 1150 | 1820 | 1400 | 950 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
117 | 350ZSL1500-5.5-37-6 | 1600 | 1350 | 900 | 1400 | 1150 | 700 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
118 | 350ZSL1500-7-45-6 | 1680 | 1400 | 950 | 1480 | 1200 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
119 | 350ZSL1500-9-55-6 | 17300 | 1430 | 950 | 1530 | 1250 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
120 | 350ZSL1500-11-75-4 | 1680 | 1400 | 950 | 1480 | 1200 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
121 | 350ZSL1500-14-90-4 | 17300 | 1430 | 950 | 1530 | 1250 | 750 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
122 | 350ZSL1500-17-110-4 | 1880 | 1500 | 1050 | 1680 | 1300 | 850 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
123 | 350ZSL1500-20-132-4 | 1880 | 1500 | 1050 | 1680 | 1300 | 850 | 230 | 1350 | 950 | 500 | 30 | 600 | 600 | 550 | 4-φ18 | JGD4 |
124 | 350ZSL1500-25-160-4 | 19500 | 1550 | 1100 | 1750 | 1350 | 900 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
125 | 350ZSL1500-30-200-4 | 2020 | 1600 | 1150 | 1820 | 1400 | 950 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
126 | 350ZSL1500-35-220-4 | 2100 | 1650 | 1200 | 1900 | 1450 | 1000 | 230 | 1420 | 1020 | 560 | 30 | 660 | 650 | 600 | 4-φ18 | JGD4 |
安装说明
1、安装前应检查机组紧固件有无松动现象，泵体流道内有无异物堵塞，以免电泵运行时损坏叶轮和泵体。
2、安装时管路重量不应加在水泵上，应有各自的支承体、以免泵变形时影响运行性能和使用寿命。
3、如泵用于输送热水或其他高温液体时，为了不使泵承受管路的热变形，泵可以不固定底脚螺栓，当管路系统在热涨冷缩时，使泵与管路同时移动。
4、为了维修方便，在泵的进出口管路应各装上一只调节阀门及在泵进出口附近各安装一只压力表，以确保泵在额定范围内运行，确保泵的正常运行和使用寿命。
起动、运转和停车
（一）起动、运行：
1、用手盘动电机风叶是否有卡住或异声等现象，正常方可启动。
2、打开上方的加水阀门，加入储液水不少于泵体容积的三分之二，关闭阀门。以后开机不需要灌引水。
3、关闭管道出口阀门，以减小启动电流。接上电源试转一下，从电机端看，为顺时针转向。（严禁反转）
4、逐步调节出口阀的开度，尽量使泵在额定性能范围内工作。
5、泵在运转过程中，如发现有异常，应立即停机检查排除。
6、检查电机电流值及温升是否符合要求范围。
（二）停车
1、关闭泵输出口管路阀门。
2、切断电源，停止电机运行。
3、关闭阀口。
4、泵长期停用时应放干储液，天气冷运冰点时如何用也应放干储液，以免冻裂泵体。
常见故障分析及其排除方法
故障现象 | 原因分析 | 排除方法 |
泵不出水 | 1、泵体内未加储液或储液不足 | 1、加足 |
2、吸入管路漏气 | 2、消除管路漏气现象 | |
3、电压过低 | 3、调整电压 | |
4、吸程太高或吸入管路太长 | 4、降低吸程或缩短管路 | |
5、电机运行方向不对 | 5、调整电机方向 | |
6、缺相 | 6、检查线路进行修复 | |
7、抽送介质密度较大或粘度较高 | 7、用水冲稀降低浓度或降低粘度 | |
8、扬程过高 | 8、改泵或降低扬程 | |
泵出水不足 | 1、因使用不当、叶轮流道或吸入管路被堵塞 | 1、消防堵塞物 |
2、叶轮磨损严重 | 2、更换叶轮 | |
3、密封圈损坏（口环处） | 3、更换 | |
泵噪音、振动过大 | 1、底脚不稳 | 1、加固 |
2、轴承磨损严重 | 2、更换轴承 | |
电机发热 | 1、流量过大，载运行 | 1、关小出口阀 |
2、碰擦 | 2、检查排除 | |
3、轴承损坏 | 3、更换 | |
4、电压不足 | 4、稳压 | |
5、介质密度较大 | 5、稀释介质,或改小叶轮 | |
泵泄漏 | 1、联接螺栓松动 | 1、固紧 |
2、密封件磨损 | 2、更换 | |
3、泵体有砂孔或破裂 | 3、焊补或更换 | |
4、密封面不平整 | 4、修整 |
客户确认需求
量身定制方案
全面施工团队
定制上门维护
贴心完善售后
首页
咨询
产品
